HD S700 Multi-system Heavy Duty Vehicles Diagnostic Tool
One Year Warranty for Hardware (Except for human damage).
Lifetime free software update.
Lifetime technical support.
Would you like help checking whether it supports your vehicle or the functions you need?
You can click the online customer service below and send your vehicle VIN along with the functions you need via private message.
Our staff will check for you and help answer your questions.
Buy It With
$239.99 USD
$559.99 USD
Buy It With
$179.99 USD
Buy It With
$499.99 USD
$1,099.99 USD

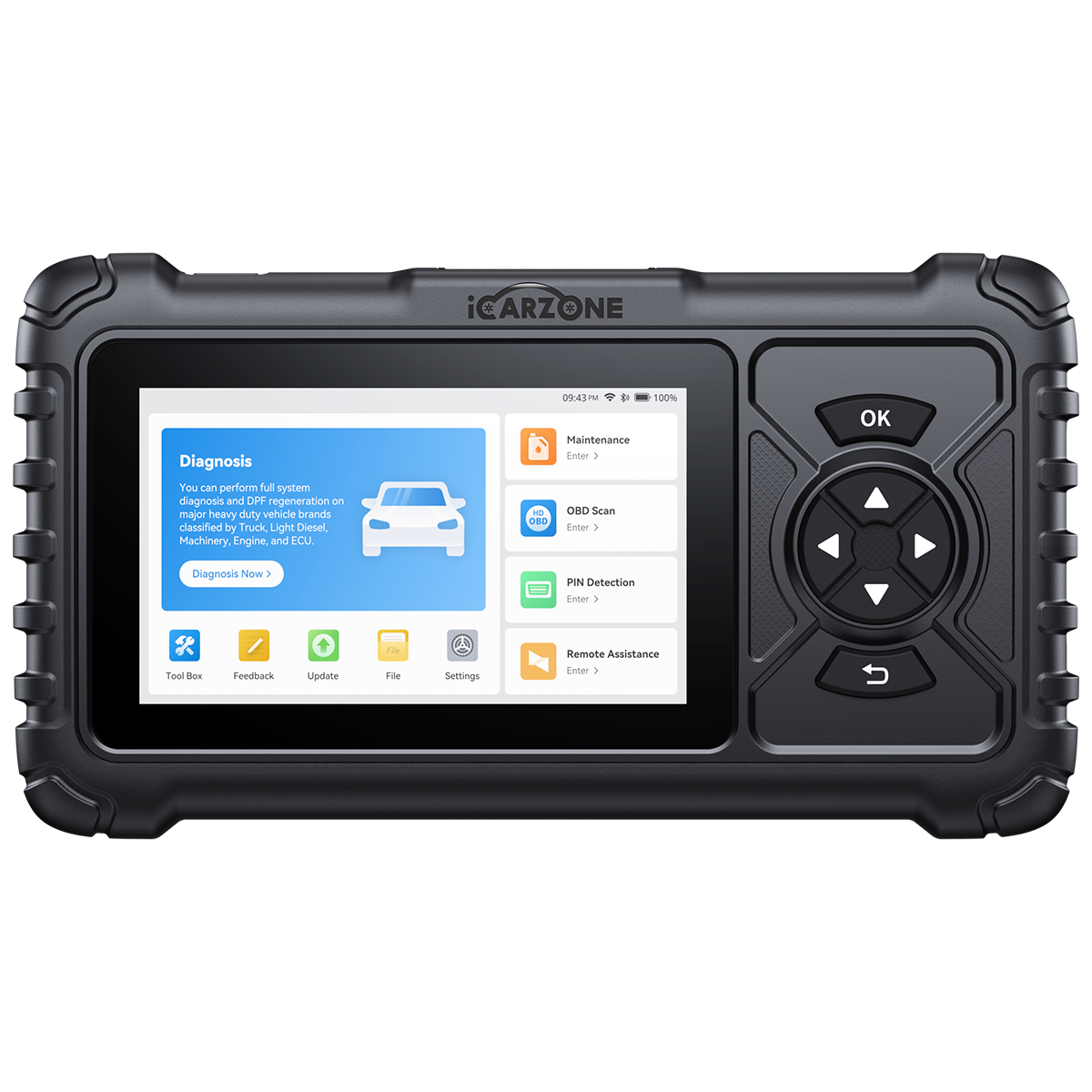

iCARZONE HD S700 Multi-system Heavy Duty Vehicles Diagnostic Tool
iCARZONE HD S700 is latest developed heavy duty diagnostic tool. It performs a comprehensive scan of all supported systems within your commercial vehicles. In addition to the regular 4 systems such Engine, ABS, Airbag and Transmission, it covers more complex systems diagnostic functions. With 5 inches touchscreen and Wi-Fi update. The HD S700 is specially made for truck mechanics, DIYers, and professionals. Give your aging cars satisfying routine maintenance to avoid costly repairs, a breakdown, or even a crash.
General diagnostic functions:
- 1 Version Information: Read the current version information of the ECU.
- 2 Read Fault Code: Read the DTC in the ECU memory to help technicians to identify the cause of the failure.
- 3 Clear Fault Code: Delete the existing fault codes.
- 4 Read Data Stream: View and capture real-time data from ECUs.
Pre-installed 37 Brands
Extension Software Package
8 Hot Service Reset Functions
- 1 DPF Regeneration
- 2 Oil Reset
- 3 Injector Coding
- 4 Clutch Matching
- 5 Brake-pad Reset
- 6 SCR Reset
- 7 Speed Limit Reset
- 8 Cylinder Cut Out Test
2 in 1 OBD Scanner
The HD S700 code reader can scan engine module through OBD interface for both heavy duty and 12v vehicles
- a Read and clear fault codes, turn-off malfunction indicator light (MIL).
- b O2 sensor test to check fuel efficiency and vehicle emission.
- c Display freeze frame data and retrieve vehicle information.
- d EVAP test for fuel tank system (Carbon canister test).
- e Display I/M readiness status (non-continuously monitored system test).
- f Request On-Board Monitoring test results for specific monitored systems).
Lifetime Free Online Update
Multi-language Supported
Supplied with 3 OBDI Adaptors
- 1 OBD-6
- 2 OBD-9
- 3 CAT-9
Specifications
- 1 Operating System: Android 8.1
- 2 Memory: 2GB
- 3 Storage: 64GB
- 4 CPU: MT6580 Contex-A74 1,3GHz
- 5 Screen Size: 5-inch
- 6 Battery: 3150 mAh / 3.8V
- 7 Bluetooth: BT5.0
- 8 Working Environment： -10°C ~ 50°C (14°F ~ 122°F)
- 9 Storage Environment： -20°C ~ 60°C (-4°F ~ 140°F)
- 10 Working Voltage： 5V
- 11 Working Current: ≤2.5A
- 12 Supported Protocols: SAE-J1850 PWM, SAE-J1850 VPW, ISO 9141, ISO-14230-2 ISO, ISO 14230-4 KWP, ISO 15765-4 CAN, J1708, J1939, CANFD
Packing List
- a Carry Case
- b Main Unit
- c Main Cable
- d OBD-6
- e OBD-9
- f CAT-9
- g Charging Adaptor
- h User’s Manual
- i USB Cable
