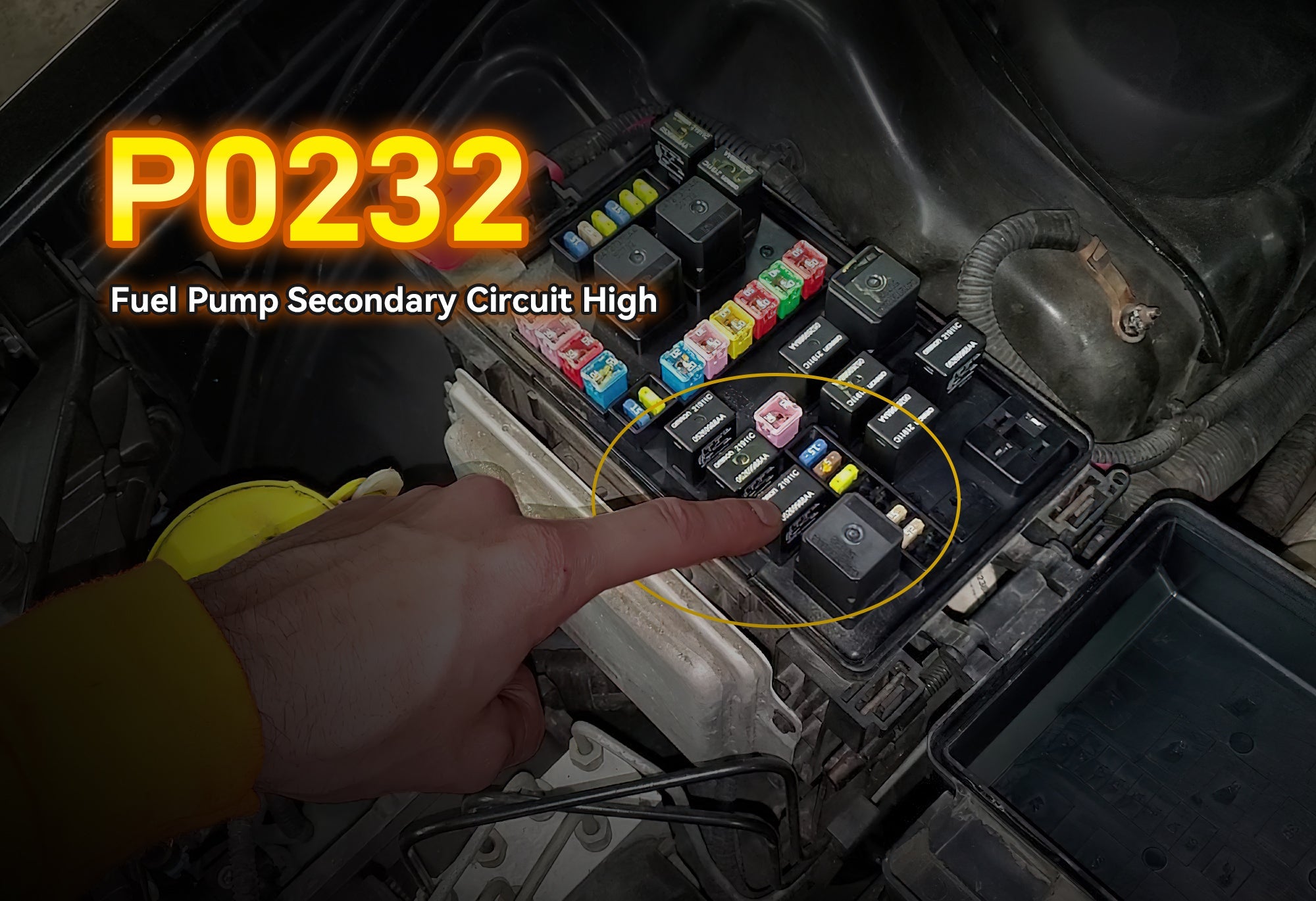

P0232 Code: Check the Fuel Pump Relay Before the Pump Itself

Q: Can I drive with a P0232 code?

Limited driving only — and only to reach a repair location. P0232 indicates a fuel pump circuit fault that can cause hard starting, sudden stalling, or unpredictable engine behavior. The most dangerous symptom: if the relay is stuck closed, the fuel pump runs continuously even after key-off — eventually draining the battery overnight and potentially overheating the pump leading to pump failure. Engine stalling in traffic is a safety risk. Short drives at low speeds to home or repair location are usually acceptable; avoid highway driving, towing, or hills. If the engine has stalled multiple times or won't start reliably, don't risk driving — tow to repair location. The relay-stuck scenario also creates fire risk in extreme cases (continuous pump operation generates heat in a flammable environment).

Q: Why does my fuel pump keep running after I turn off the key?

This is the classic P0232 symptom — and the diagnostic giveaway. The fuel pump relay controls power to the pump; when functioning properly, it opens (cuts power) when the key turns off, stopping the pump within 1-2 seconds. If the relay's internal contacts have welded closed from age or electrical arcing, it stays in the ON position even when the PCM commands OFF. The pump continues running until you disconnect the battery. About 40-50% of P0232 cases are exactly this scenario. The fix: replace the relay with an OEM unit ($10-$30 part, 5 minutes installation). Confirm the diagnosis with the relay swap test — swap the suspect fuel pump relay with an identical relay nearby (horn, headlamp, A/C); if the problem moves to that other circuit, the relay is confirmed bad.

Q: How much does it cost to fix P0232?

Widely variable — but most cases are inexpensive when diagnosed correctly. Fuel pump relay (OEM): $10-$30 DIY, $50-$150 at shop (fixes 40-50% of cases). Fuel pump fuse: $1-$5. Wiring repair: $15-$60. Fuel Pump Driver Module (FPDM): $150-$400 part + $40-$80 DIY labor savings vs. $300-$600 at shop. Inertia switch (Ford): $30-$80 part + $50-$150 labor. Fuel pump assembly replacement (if pump itself failed): $150-$500 part + significant labor ($300-$800 at shop, $0-$100 DIY tools). PCM hardware failure (rare): $800-$1,500. About 40-50% of P0232 cases resolve under $50 because they're stuck relays. The biggest cost-saver: do the free key-off listening test (Step 2) and the relay swap test (Step 4) BEFORE paying any shop diagnostic fee. Many shops charge $120-$200 for diagnosis they could have done in 10 minutes with a relay swap.

Q: Will P0232 damage my fuel pump?

Yes — and this is the urgency. A stuck-closed relay keeps the fuel pump running continuously, including after key-off and during long parking periods. Fuel pumps are designed for intermittent duty (running while engine is operating); continuous operation generates excessive heat in the pump motor and can prematurely fail the pump itself. If P0232 is left unresolved for weeks, the original $15 relay problem can cascade into a $500 pump assembly problem. Additionally, continuous pump operation drains the battery overnight and can over-pressurize the fuel rail, potentially damaging fuel injectors or pressure regulator. Address P0232 within days, not weeks — the diagnosis is cheap and easy, and the consequences of delay escalate fast.

Q: What scanner do I need to fix P0232?

You need a scanner with bidirectional fuel pump activation, live FPDM PWM data, and broad platform coverage. The iCarzone UR1000 is a 7-inch Android tablet diagnostic scanner at $499.99 designed exactly for P0232 diagnosis. Key features: bidirectional fuel pump activation (commands pump on/off so you can verify mechanical response without cranking engine), live data graphing of FPDM PWM duty cycle (should be 25-50% at idle, ramping with demand; stuck at 90%+ indicates FPDM failure), live fuel rail pressure monitoring (verifies pump output after repair), broad manufacturer-specific coverage including Ford F-150 (FPDM-equipped platforms), Chevy Silverado, Chrysler/Dodge/RAM (TIPM-equipped platforms — common P0232 source), Toyota, Honda, BMW, and Mercedes. The bidirectional control is essential — without it you're guessing whether the pump is working; with it you can isolate whether the fault is electrical (circuit) or mechanical (pump itself).

Q: What's the difference between P0230, P0231, P0232, and P0233?

All four are fuel pump circuit codes in different failure modes. P0230 = Fuel Pump Primary Circuit Malfunction (general fault in the control side — between PCM and relay; can be either too low or no signal). P0231 = Fuel Pump Secondary Circuit Low (voltage too low on pump-side circuit — opposite of P0232; usually open circuit or relay not closing when commanded). P0232 = Fuel Pump Secondary Circuit High (this article — voltage too high; relay stuck closed or shorted to power). P0233 = Fuel Pump Secondary Circuit Intermittent (comes and goes; usually a chafed wire or loose connector). Pattern recognition: P0230 alone = control/PCM-side issue; P0231 or P0232 alone = pump-side circuit issue; P0231 + P0232 together = chafed harness shorting between control wire and battery voltage; P0233 alone = intermittent connection that needs wire-wiggle testing.

Q: Why does my Ford F-150 keep getting P0232?

Ford F-150 has three primary P0232 root causes that are well-documented. (1) FPDM (Fuel Pump Driver Module) water intrusion: The FPDM on F-150 is located on the frame rail near the fuel tank — exposed to road water, snow melt, and rust. Internal corrosion from water intrusion is a very common P0232 trigger on F-150s with 60,000+ miles. Diagnosis: visually inspect FPDM for water staining or corrosion; replace with updated module + add water shield ($150-$300 + about 30 minutes labor). (2) Inertia switch tripped: F-150s have an inertia fuel cutoff switch (trunk rear corner or under dash) that activates during collisions but can sometimes trip from rough roads or even slamming the trunk. Reset by pressing the button (button should stay depressed). (3) Stuck fuel pump relay: Same as other vehicles — relay contacts weld closed; swap test confirms; replace for $15. Always check FPDM water intrusion first on F-150 — it's the dominant cause.

Q: Why does my Chrysler/Dodge/RAM keep getting P0232?

Chrysler/Dodge/Jeep/RAM platforms have a unique P0232 cause: the TIPM (Totally Integrated Power Module). TIPM is an electronic module that replaced traditional separate relays — it controls fuel pump, ignition, and many other circuits through internal solid-state relays. On 2007-2013 Dodge/Chrysler platforms (especially RAM 1500 and Jeep Grand Cherokee), the internal fuel pump relay inside the TIPM is a documented failure point. Symptoms identical to a stuck external relay (pump runs after key-off, P0232), but the 'fix' is much more expensive — TIPM replacement runs $400-$1,200 OEM, or aftermarket external relay bypass kits exist ($60-$200) that route the fuel pump through a traditional external relay. Important: there's a documented class-action lawsuit settlement for some Chrysler TIPM issues — check your VIN at Chrysler customer assistance to see if you qualify for free or reduced-cost TIPM replacement before paying out of pocket.

⚡ QUICK ANSWER

P0232 means "Fuel Pump Secondary Circuit High" — the PCM detected voltage in the fuel pump control circuit that's higher than normal, usually because something is keeping the circuit powered when it shouldn't be. The classic failure mode: the fuel pump relay's internal contacts have welded closed from age or arcing, so the pump runs continuously even after key-off. The PCM monitors the circuit, sees power present when it commanded the circuit off, and sets P0232. Cause distribution: about 40-50% are a stuck-closed fuel pump relay ($10-$30 replacement in 5 minutes), 20-25% are wiring shorted to power ($5-$60 repair), 15-20% are Fuel Pump Driver Module (FPDM) failure on FPDM-equipped platforms ($150-$400 OEM), 5-10% are inertia switch issues on Ford platforms ($30-$80), 5-10% are fuel pump assembly failure ($150-$500), and under 5% are PCM hardware. The free 10-second diagnostic: listen near the fuel tank after key-off — if pump still humming, relay stuck closed.

What Does P0232 Actually Mean?

The fuel pump circuit is one of the simplest yet most critical systems in modern vehicles. When you turn the ignition to ON, the PCM activates the fuel pump for 2-3 seconds to pressurize the fuel rail (this is the humming sound you hear before starting). When you crank, the pump runs continuously. When you turn the key OFF, the PCM commands the pump to stop — and the pump must stop within 1-2 seconds. The circuit between PCM, relay, and pump is monitored by the PCM in real time; if voltage on the pump-side circuit doesn't match what the PCM commanded, a fault code sets.

P0232 specifically means the secondary (pump-side) circuit shows higher voltage than expected. The most common cause: when you turn the key OFF, the PCM commands the relay to open (cutting power to the pump), but voltage is still present on the pump-side wire because the relay's internal contacts have welded closed. The PCM sees this as a fault. Other causes include direct short to battery voltage from a chafed wire, malfunctioning Fuel Pump Driver Module (FPDM) on newer platforms, or in rare cases the PCM internal circuit itself. The "secondary" terminology refers to the output side of the relay (toward the pump); "primary" refers to the control side (from PCM to relay).

P0232 vs P0230 / P0231 / P0233 — when the codes differ: P0230 = Fuel Pump Primary Circuit Malfunction (general fault in the control side between PCM and relay — usually too low signal). P0231 = Fuel Pump Secondary Circuit Low (voltage too low on pump-side — usually relay not closing when commanded, or open circuit). P0232 = Fuel Pump Secondary Circuit High (this article — voltage too high, relay stuck closed or shorted to power). P0233 = Fuel Pump Secondary Circuit Intermittent (comes and goes — chafed wire or loose connector). Pattern recognition: P0231 + P0232 together usually means a harness chafed against a body bracket creating intermittent short; P0232 alone almost always means stuck relay.

Critical — never authorize fuel pump replacement on P0232 without documented relay swap test: P0232 is so commonly a $15 relay that ASE-certified shops should ALWAYS perform the relay swap test before quoting any expensive repair. If a shop quotes $500-$800 for "fuel pump replacement" or even $300+ for "FPDM diagnosis" without first documenting the relay swap test results, get a second opinion immediately. The relay swap test takes 5 minutes of shop time and costs $0 in materials — saving the customer hundreds in unnecessary parts. Shops that skip this step are either uninformed or aggressively padding the bill. Additionally, replacing the fuel pump while the relay is still stuck closed will damage the new pump within weeks from continuous operation heat.

What Are the Symptoms of P0232?

P0232 symptoms are unusually consistent because the fuel pump circuit affects engine starting and operation directly:

Check Engine Light — always; sometimes intermittent

Fuel pump runs after key-off — the diagnostic giveaway (relay stuck)

Hard starting / extended cranking — fuel rail not properly primed

Sudden stalling while driving — pump shutoff or over-pressure

Engine sputters / loses power — fuel delivery erratic

Battery drains overnight — pump running while parked

Burning smell near fuel tank — overheated pump (severe case)

Fuel pump warning light — on some platforms (Ford, BMW)

The "battery dead in the morning" tell: If your battery is mysteriously drained every morning AND you have P0232, the two are connected. A stuck-closed fuel pump relay keeps the fuel pump running 24/7 — drawing 5-10 amps continuously from the battery. Even a healthy battery dies overnight at that load. Many owners replace the battery, the alternator, and search for parasitic drains while the actual culprit is a $15 fuel pump relay. Always check P0232 status when investigating overnight battery drain. The relay swap test (Step 4) takes 5 minutes and definitively resolves whether the relay or something else is causing the issue.

Is P0232 Code Serious?

High severity — both safety and damage-escalation risks. Address within days, not weeks.

Sudden stalling in traffic → high safety risk

Hard start / no-start → can leave you stranded

Continuous pump operation → premature pump failure escalation

Battery drain overnight → repeated dead-battery situations

Pump overheating → fire risk in extreme cases

Diagnostic misdiagnosis risk → HIGH; overpaying for pump replacement when relay is the issue

The defining feature of P0232: the actual fix is cheap and fast, but ignoring it can transform a $15 problem into a $500-$800 problem within weeks. The cost-escalation pattern: P0232 sets → owner ignores → relay stays stuck → pump runs continuously → pump overheats and fails from continuous duty → now needs full pump assembly replacement ($300-$800) plus the original relay. The protection pattern: P0232 sets → owner performs free key-off listening test → confirms stuck relay → swaps relay for $15 → done in 30 minutes. Knowing this code is one of the best money-savers in the OBD-II catalog — and ignoring it is one of the most expensive mistakes.

Severity rating: 🟠 High — but mostly self-inflicted. Continuous pump operation generates heat that destroys the pump itself within weeks of P0232 onset. Sudden engine stalling in traffic creates collision risk. Battery drain creates morning no-start scenarios that strand drivers. None of this is necessary because the fix is usually $15 and 30 minutes. Address P0232 the same day if possible, within 3-5 days at the latest. The $15 relay is cheaper than the $200 jump-start service call you'll need when the battery dies, let alone the $500 pump replacement.

What Causes a P0232 Code? (Ranked by Frequency)

Cause distribution heavily favors the fuel pump relay because that's the simplest component with the most stress (high current, mechanical contacts, age-related wear):

Fuel Pump Relay Stuck Closed (40-50% of Cases)

The dominant P0232 cause. The fuel pump relay is an electromechanical switch that cycles tens of thousands of times over a vehicle's life. Internal contacts arc during every switching event, gradually transferring metal between contact surfaces. Eventually the contacts can weld together permanently — the relay stays in the ON position even when the PCM commands OFF. Distinctive: fuel pump audibly continues running after key-off (the diagnostic giveaway); often battery drain overnight; P0232 set immediately after starting. Fix: OEM fuel pump relay replacement ($10-$30) in 5 minutes — pull old relay from fuse box, plug new one in. About 40-50% of P0232 cases stop here. One of the cheapest OBD-II fixes.

Fix: $10–$30 OEM relay

Wiring Shorted to Power (20-25%)

The pump-side wire from relay to fuel pump runs along the vehicle underbody, exposed to vibration, road debris, and water. Common failure points: chafing against frame rails or fuel tank straps wearing through insulation, melted insulation from contact with hot exhaust components, rodent damage in winter storage. Result: bare wire touches metal carrying battery voltage, creating short to power. Distinctive: intermittent P0232 with P0233 (intermittent code) often appearing simultaneously; problem worsens with vibration. Fix: trace wire, locate damage, splice with high-temp wire ($15-$30) or replace harness section ($30-$60). About 20-25% of P0232 cases.

Fix: $15–$60 wiring repair

Fuel Pump Driver Module (FPDM) Failure (15-20%)

Modern vehicles (2008+) replaced fixed-speed relays with PWM-controlled Fuel Pump Driver Modules (FPDM) that vary pump speed based on demand. The FPDM contains internal driver transistors that can fail in a "stuck high" state — continuously commanding full pump power. Most common on Ford F-150, Mustang, Escape, Explorer (FPDM mounted on frame rail near tank — exposed to water and corrosion). Distinctive: P0232 + Ford VIN; relay test passes; FPDM PWM duty cycle stuck at 90-100% on scanner. Fix: replace FPDM with updated revision ($150-$400 OEM); install water shield on Ford F-150. About 15-20% of P0232 cases.

Fix: $150–$400 OEM FPDM

Inertia Switch Issue — Ford-Specific (5-10%)

Ford F-150, Mustang, Escape, Explorer, and some Lincoln platforms use an "inertia switch" — a safety device that cuts fuel pump power if the vehicle detects a collision impact. The switch can also fail closed (always-on state), creating the same circuit-high condition that triggers P0232. Distinctive: P0232 on Ford vehicle; relay and FPDM both test good; manual switch reset doesn't change behavior. Location varies: trunk rear corner, rear passenger kick panel, or under dashboard near steering column. Fix: replace inertia switch assembly ($30-$80 part + $50-$150 labor).

Fix: $30–$80 inertia switch

Fuel Pump Assembly Failure (5-10%)

The pump itself can fail in a way that creates circuit anomalies — internal short, motor brush wear creating intermittent power draw, or pump motor seizure. Less common cause of P0232 specifically (more likely to cause P0231 or no-start), but does occur. Distinctive: pump physically labors or makes unusual noise; live fuel pressure data shows erratic readings; pump has high mileage (130,000+); often accompanies fuel quality issues. Fix: complete fuel pump assembly replacement ($150-$500 part, often requires fuel tank drop on older platforms — significant labor). About 5-10% of P0232 cases.

Fix: $150–$500 pump assembly

TIPM (Chrysler/Dodge/RAM) Internal Relay Failure (5-8%)

Chrysler/Dodge/Jeep/RAM platforms 2007-2013 use the Totally Integrated Power Module (TIPM) — an electronic module containing internal solid-state relays. The TIPM's internal fuel pump relay is a documented failure point with class-action lawsuit settlement coverage on some models. Symptoms identical to external relay failure but fix is more expensive. Distinctive: Chrysler/Dodge/Jeep/RAM VIN; especially common on 2011-2013 RAM 1500 and Jeep Grand Cherokee. Fix: TIPM replacement ($400-$1,200 OEM) OR aftermarket external relay bypass kit ($60-$200). Check Chrysler customer assistance for TIPM warranty coverage before paying.

Fix: $60–$1,200 TIPM

Fuel Pump Fuse Issue (Rare, <5%)

While typically associated with P0231 (circuit low) rather than P0232, a fuel pump fuse can occasionally cause P0232 if there's an alternate ground/power path being detected by the PCM. More commonly seen during initial diagnosis as a low-cost first check. Distinctive: complete pump non-operation; engine no-start condition. Fix: replace fuse ($1-$5).

Fix: $1–$5 fuse

PCM Hardware Failure (Very Rare, <5%)

PCM internal circuit failure misinterpreting fuel pump circuit voltage. Should be considered ONLY after all other causes (relay, wiring, FPDM, inertia switch, pump, TIPM) are confirmed good. Fix: PCM replacement + programming ($800-$1,500).

Fix: $800–$1,500 PCM

What You'll Need

Tools

OBD2 scanner with bidirectional fuel pump test iCarzone UR1000 ›
Digital multimeter (DC voltage + continuity)
Fuel pressure gauge (mechanical, 0-100 PSI)
Test light (for circuit verification)
Fuse puller and basic socket set
Owner's manual (for fuse box diagram)

Possible Parts & Supplies

OEM fuel pump relay $10–$30
Fuel pump fuse (15A or 20A) $1–$5
Electrical contact cleaner $5–$8
Dielectric grease for connector $5–$10
FPDM (if Ford / FPDM-equipped) $150–$400
Inertia switch (if Ford) $30–$80
Fuel pump assembly (only if pump failed) $150–$500

Recommended Diagnostic Tool for P0232

iCarzone UR1000 — 7" Android Tablet OBD2 Diagnostic Scanner

★★★★★ Bidirectional Fuel Pump · FPDM PWM · Live Pressure

7-inch Android tablet diagnostic scanner with full bidirectional control — essential for P0232 diagnosis. Active fuel pump test commands the pump ON/OFF on demand, letting you verify mechanical response and circuit behavior without cranking the engine. Live data graphing of Fuel Pump Driver Module (FPDM) PWM duty cycle shows whether the module is commanding 25-50% (normal) or stuck at 90-100% (FPDM failure). Live fuel rail pressure monitoring verifies pump output after repair. Broad manufacturer-specific coverage including Ford F-150 (FPDM-equipped platforms — the highest-volume P0232 platform), Chevy Silverado / Tahoe, Chrysler / Dodge / RAM (TIPM-equipped platforms — common P0232 cause), Toyota Camry / Tacoma, Honda Civic / Accord, BMW 3 Series / 5 Series, and Mercedes-Benz. The bidirectional control is the killer feature for P0232 — without it, you're guessing whether the issue is the relay, the FPDM, or the pump itself; with it, you isolate the fault in minutes.

$499.99

Shop Now ›

How Do You Fix a P0232 Code?

Follow these steps in order. Step 2 (the free key-off listening test) is the killer diagnostic — it resolves about 40-50% of cases in 10 seconds. Step 4 (relay swap test) is the second killer diagnostic — definitively confirms whether the relay is the cause.

P0232 Diagnostic Flowchart — Decision Tree

Figure 1: P0232 diagnostic decision tree — Step 2 (key-off listening) diagnoses 40-50% of cases for $0 in 10 seconds. Step 4 (relay swap test) is the second killer diagnostic. Most cases stop with a $15 relay replacement.

1
Scan All Codes and Record Freeze Frame Data

Plug in scanner, record all codes and freeze frame data. P0232 commonly appears with companion codes:
- P0230 — Fuel Pump Primary Circuit Malfunction (general control fault)
- P0231 — Fuel Pump Secondary Circuit Low (opposite voltage problem)
- P0233 — Fuel Pump Secondary Circuit Intermittent (comes and goes)
- P0628 / P0629 — Fuel Pump A Control Low / High (Chrysler TIPM-specific)
- P0087 / P0088 — Fuel Rail Pressure Low / High (downstream effects)
- P0300-P0308 — Misfires from fuel starvation
Record freeze frame data:
- Voltage at trigger time — battery voltage during fault
- Engine RPM — code set while cranking vs. running vs. after key-off
- ECT temperature — cold start vs. warm operation
- Pending FPDM communication codes — separate U-codes possible
Pattern recognition for P0232 companion codes:
- P0232 alone: relay stuck closed (most common scenario)
- P0231 + P0232 together: chafed harness shorting between control wire and battery voltage
- P0232 + P0628 on Chrysler/RAM: TIPM internal relay failure
- P0232 + multiple misfires: pump issue causing fuel starvation
2
The Free 10-Second Key-Off Listening Test

The single most diagnostic step on P0232. About 40-50% of cases are conclusively diagnosed at this step without any tools:

Procedure:
- Start engine, let run for 30 seconds (pump achieves stable operation)
- Turn key to OFF position
- IMMEDIATELY exit vehicle
- Walk to rear of vehicle near fuel tank (located under back seat or trunk floor on most cars; under bed on trucks)
- Listen carefully for 10-15 seconds in a quiet environment
- Optional: place hand on fuel tank — running pump creates noticeable vibration
Expected behavior:
- Normal: silence within 1-2 seconds of key-off; no vibration
- Stuck relay: continuous humming or whining lasting 10+ seconds (or until you disconnect battery); steady vibration in tank
- Intermittent: pump cycles on and off erratically
Decision tree:
- Pump runs continuously after key-off → relay is stuck closed → skip to Step 4 (relay swap test to confirm and fix)
- Pump shuts off normally → relay is OK but P0232 is intermittent or wiring-related → proceed to Step 3
- Pump cycles erratically → wiring shorting intermittently → proceed to Step 6
This 10-second test is the most important P0232 diagnostic step. Most owners who pay $200+ at shops never had this simple test performed. The pump-stuck-on condition is impossible to miss once you know to listen for it — the relay sound is loud and steady, almost like a small electric fan running.
3
Check the Fuel Pump Fuse

Before deeper testing, verify the fuel pump fuse is intact:

Locating fuse boxes:
- Most vehicles have TWO fuse boxes: under hood (engine bay) AND in interior
- Fuel pump fuse usually in UNDER-HOOD fuse box (higher amperage circuit)
- Owner's manual has fuse diagram
Identifying the fuse:
- Look for: "FUEL PUMP", "F/PUMP", "F.PMP", "FP", "FUEL PMP"
- Typical amperage: 15A or 20A (color-coded: 15A = blue, 20A = yellow)
Testing the fuse:
- Pull fuse with fuse puller tool or needle-nose pliers
- Visual test: internal metal strip should be intact
- Multimeter continuity test confirms (beep = good, silence = blown)
- Replace with SAME amperage rating ONLY ($1-$5)
If new fuse blows immediately: active short circuit in the fuel pump wiring. Proceed to Step 6 (wiring inspection). Do NOT keep replacing fuses — find and fix the short. About 5% of P0232 cases involve fuse problems (more commonly P0231).
4
Relay Swap Test — The Definitive Diagnostic

The killer test that definitively confirms whether the relay is the cause:

Why relay swap works:
- Modern vehicles use multiple identical relays (horn, headlamp, A/C compressor, fuel pump)
- Same part number = interchangeable for diagnostic purposes
- If you swap a "suspect bad" relay with a "known good" one and the problem moves, the relay IS bad
- If the problem stays, the relay is good — fault is elsewhere
Procedure:
- Locate fuel pump relay in under-hood fuse box (owner's manual diagram)
- Identify an identical relay nearby — common candidates: horn relay, headlamp relay, A/C compressor relay
- Verify identical: pull both relays and compare body markings (part numbers should match exactly)
- If markings match: relays are interchangeable
- If markings differ: don't swap (different relays may have different pin configurations)
The swap:
- Engine OFF, key OFF
- Pull fuel pump relay straight up out of socket
- Pull donor relay (horn, etc.) straight up out of socket
- Install donor relay in fuel pump position
- Install fuel pump relay in donor position
- Start engine; let run 30 seconds; turn key OFF
- Repeat key-off listening test (Step 2)
Interpreting results:
- Fuel pump now shuts off normally → original relay was stuck closed → install new OEM fuel pump relay ($10-$30) → return donor relay to its position → P0232 resolved
- Pump still runs after key-off with swapped relay → relay is NOT the problem → fault is in wiring shorted to power, FPDM, or PCM → proceed to Step 5
- Now the OTHER function fails (horn doesn't work, etc.) → confirms relay is bad → replace
The relay swap test is the gold standard P0232 diagnostic — definitive, fast, free. If your shop didn't perform this test before quoting expensive repairs, get a second opinion. Many shops skip this and go straight to FPDM or pump replacement on Ford F-150 platforms specifically — costing customers $200-$400 unnecessarily.
5
Test the Fuel Pump Driver Module (FPDM)

If relay swap confirmed the relay is OK but P0232 persists, the Fuel Pump Driver Module (FPDM) may be the cause. Common on Ford F-150, Mustang, Escape, Explorer (most modern Ford platforms with returnless fuel systems):

What is FPDM:
- FPDM = Fuel Pump Driver Module (also called FPCM on some platforms)
- PWM (Pulse Width Modulation) controller that varies fuel pump speed based on demand
- Replaces older fixed-speed relay-only systems
- Typical operation: 25-50% duty cycle at idle, ramping to 80%+ under heavy demand
- Stuck high duty cycle (90-100% continuous) = FPDM internal driver fault
FPDM location:
- Ford F-150: frame rail near fuel tank (exposed to road water — major failure cause)
- Ford Mustang / Explorer: under vehicle near tank or in trunk
- Lincoln platforms: usually under driver-side rear seat
- Service manual confirms exact location for your VIN
Diagnostic procedure:
- Visual inspection: look for water staining, corrosion, melted plastic on FPDM housing
- Disconnect electrical connector; check pins for corrosion
- Multimeter on DC volts; key ON, engine OFF: verify 12V power input to FPDM
- Verify ground continuity to chassis
- Reconnect; use scanner (UR1000) to view live FPDM PWM duty cycle
- Normal: 25-50% at idle, varies with demand
- Stuck: 90-100% continuous = FPDM internal fault
Fix: replace FPDM ($150-$400 OEM) — Ford part numbers vary by year/model. Ford F-150 specifically: install water shield ($20) along with new FPDM to prevent recurrence. About 15-20% of P0232 cases (especially on Ford platforms) trace to FPDM.
6
Wiring Inspection + Ford Inertia Switch Check

If relay and FPDM both test good, the issue is likely wiring shorted to power, or on Ford platforms an inertia switch issue:

Wiring inspection:
- Inspect wiring from fuel pump relay along its routing to the fuel pump connector
- Common short locations: chafing along frame rails near fuel tank straps, melted insulation near exhaust, rodent damage
- Visual signs of short: copper showing through insulation, melted plastic, burn marks
- Multimeter test: with key OFF, measure resistance between fuel pump signal wire and chassis ground — should be high resistance; direct short to battery voltage = wiring shorted to power
- Wire-wiggle test with engine running and scanner monitoring fuel pump live data — wiggle harness sections looking for sudden voltage spikes
Fuel pump connector inspection:
- Access usually requires removing back seat cushion to expose fuel pump access panel
- Check connector pins for corrosion (green sulfate is common on older vehicles)
- Verify all pins firmly seated; no melted plastic from heat
- Clean with electrical contact cleaner; apply dielectric grease before reconnecting
Ford-specific inertia switch test:
- Inertia switch is a safety device on Ford F-150, Mustang, Escape, Explorer, and Lincoln
- Location: trunk rear corner, rear passenger kick panel, or under dashboard near steering column
- Press the small button on top firmly
- Button should stay depressed (flush with switch body)
- If button pops back up = switch tripped (usually from collision but sometimes from rough roads)
- Reset by pressing button down until it stays
- If switch won't reset (keeps popping up) = switch failed internally; replace ($30-$80 part)
Common fixes: connector cleanup ($5-$10), wire splice ($15-$30), pigtail replacement ($25-$60), inertia switch ($30-$80). About 5-10% of P0232 cases on Ford platforms trace to inertia switch.

How Much Does P0232 Cost to Fix?

P0232 cost varies widely by root cause — $15 to $1,200 typical, with about 40-50% of cases resolving under $50.

Repair	DIY Cost	Shop Cost	You Save	Type
Diagnostic — key-off listening test	$0	$120–$200	Up to $200	10-Sec Free Test
Diagnostic — relay swap test	$0	$120–$200	Up to $200	5-Min Free Test
OEM fuel pump relay (FIXES 40-50% of cases)	$10–$30	$80–$200	Up to $170	5-Min Fix
Fuel pump fuse replacement	$1–$5	$30–$80	Up to $75	DIY Trivial
Connector cleanup + dielectric grease	$5–$15	$60–$120	Up to $105	DIY Easy
Wiring splice + heat protection	$15–$30	$120–$250	Up to $235	DIY Moderate
Inertia switch replacement (Ford)	$30–$80	$120–$250	Up to $170	DIY Easy
FPDM replacement (Ford and similar)	$150–$400	$300–$600	Up to $200	DIY Friendly
Fuel pump assembly replacement	$150–$500 part	$400–$1,200	Up to $700	DIY Advanced
TIPM replacement (Chrysler/Dodge/RAM)	$400–$800	$600–$1,200	Up to $400	Shop Recommended
TIPM bypass kit (aftermarket alternative)	$60–$200	$200–$500	Up to $300	DIY Friendly
PCM replacement (extraordinarily rare)	N/A	$800–$1,500	—	Last Resort

The diagnostic ROI: The $499 UR1000 scanner with bidirectional fuel pump test + live FPDM PWM data pays for itself on a single P0232 case — saving $300-$700 by performing the relay swap test, FPDM diagnostic, and pump verification DIY rather than dealer/shop. The bidirectional fuel pump test alone is the killer use case — most consumer scanners can't command the pump on/off, which means they can't isolate whether the fault is the relay, the FPDM, or the pump itself. After 1-2 P0232 services for yourself or family, the scanner has paid for itself. Plus it works on all other OBD-II codes you'll see over the years.

Per the EPA's emissions standards ↗ EPA Vehicle Emissions I/M Program, a vehicle with an active P0232 code will fail OBD-II emissions inspection. Fuel system components are typically covered under federal emissions warranty for the first 8 years / 80,000 miles. Verify with your dealer using VIN before paying out of pocket on newer vehicles — many P0232 cases on covered vehicles qualify for free relay, FPDM, or pump replacement.

Which Vehicles Are Most Prone to P0232?

P0232 appears on any OBD-II vehicle (1996+) but is statistically most common on platforms with documented relay or FPDM failure patterns. High-volume platforms: Ford F-150 (FPDM water intrusion) and Chrysler/Dodge/RAM (TIPM internal relay failure). Deep-dives below.

Make	Model / Engine	Years	Primary Cause & Notes	Risk
Ford / Lincoln	F-150, Mustang, Escape, Explorer, Lincoln MKX (3.5L EcoBoost, 5.0L Coyote, 2.7L EcoBoost)	2008–2024	FPDM water intrusion + inertia switch issues. See Ford F-150 deep-dive.	High
Chrysler / Dodge / Jeep / RAM	RAM 1500, Grand Cherokee, Charger, Challenger, Town & Country	2007–2013	TIPM internal relay failure. See Chrysler deep-dive.	High
Chevrolet / GMC	Silverado, Tahoe, Suburban, Sierra, Yukon (5.3L V8, 6.0L V8)	2005–2024	External fuel pump relay failure — standard symptom pattern; OEM AC Delco relay recommended.	Medium
Toyota / Lexus	Camry, Tacoma, Tundra, Highlander, Lexus RX/ES	2005–2024	Relay failure at high mileage (130,000+); generally reliable platform.	Low
Honda / Acura	Civic, Accord, CR-V, Pilot, Acura MDX/TLX	2005–2024	Relay failure at high mileage; Honda Genuine relay recommended.	Low
VW / Audi	Jetta, Golf, Passat, A4, A6, Q5 (1.8T, 2.0T TSI/TFSI)	2005–2024	Mixed causes — relay and pump assembly failures; VAG OEM parts recommended.	Medium
BMW / Mini	3 Series, 5 Series, X3, X5, Mini Cooper (N20, N52, N55)	2008–2024	EKPS (electronic fuel pump control) module failures common on direct injection platforms.	Medium
Mercedes-Benz	C-Class, E-Class, S-Class, GLC, GLE	2005–2024	Fuel pump control module failures; high-mileage relay wear.	Medium

P0232 on Ford F-150 (FPDM Water Intrusion + Inertia Switch)

Ford F-150 is the highest-volume P0232 platform in North America. Three distinct patterns drive the high failure rate:

1. FPDM water intrusion (the dominant pattern). The Fuel Pump Driver Module on F-150 is located on the frame rail near the fuel tank — directly exposed to road water, snow melt with salt, and accumulated mud. Internal corrosion from water intrusion is the most common P0232 trigger on F-150s with 60,000+ miles. The FPDM housing seal degrades over time, allowing moisture to corrode the internal driver transistors. Distinctive: P0232 + Ford F-150 + 60,000+ miles; FPDM shows water staining, rust marks, or melted housing on visual inspection. Fix: replace FPDM with updated revision ($150-$300 OEM part); install Ford's FPDM water shield kit ($20-$30) to prevent recurrence. About 50-60% of Ford F-150 P0232 cases stop here.

2. Inertia switch issues. Ford F-150 has a Fuel Pump Inertia Switch (FPIS) — a safety device that cuts fuel pump power if a collision is detected. Location: typically in trunk rear corner or behind passenger kick panel. Common failures: switch trips from rough roads or hard impacts (cargo settling, going over speed bumps fast); internal switch contacts can also fail closed. Fix: press reset button firmly until it stays depressed (free); if won't reset, replace switch ($30-$80 part). About 10-15% of Ford F-150 P0232 cases.

3. Standard fuel pump relay failure. Same as other platforms — relay contacts weld closed; swap test confirms; replace with Motorcraft OEM relay ($15-$30). About 20-25% of Ford F-150 P0232 cases. Less common than FPDM-related failures because the F-150 specifically uses FPDM-controlled pump rather than relay-only system.

Ford F-150 action plan: Step 2 listening test first to confirm pump-runs-after-key-off pattern. Then check FPDM visually for water intrusion (most common F-150 cause). If FPDM looks dry, perform relay swap test. If both pass, check inertia switch. Use Motorcraft OEM parts only — aftermarket FPDMs have high failure-from-new rates on F-150. Install Ford's water shield kit when replacing FPDM. Check NHTSA.gov for VIN-specific TSBs. Plan $150-$300 for most Ford F-150 P0232 cases involving FPDM.

P0232 on Chrysler / Dodge / RAM (TIPM Internal Relay)

Chrysler, Dodge, Jeep, and RAM platforms 2007-2013 have a unique P0232 cause: the Totally Integrated Power Module (TIPM):

1. TIPM internal fuel pump relay failure (the dominant pattern). Starting around 2007, Chrysler replaced traditional separate relays with the TIPM — an electronic module containing internal solid-state relays for fuel pump, ignition, and many other circuits. The TIPM's internal fuel pump relay is a documented failure point with hundreds of complaints across affected platforms. Most affected models: 2011-2013 RAM 1500; 2011-2013 Jeep Grand Cherokee; 2007-2013 Dodge Charger / Challenger; 2008-2013 Chrysler Town & Country / Dodge Caravan. Symptoms identical to external relay failure — pump runs after key-off, P0232, intermittent no-starts. Fix: TIPM replacement ($400-$1,200 OEM) — significantly more expensive than external relay because the entire module must be replaced. OR aftermarket external relay bypass kit ($60-$200) that routes the fuel pump through a traditional external relay, bypassing the failed internal relay inside the TIPM.

2. Class-action lawsuit coverage. Documented class-action lawsuit settlement covers some Chrysler TIPM-related fuel pump issues. Affected vehicles may qualify for free or reduced-cost TIPM replacement. Check VIN with Chrysler customer assistance at FCAUS LLC before paying out of pocket. The lawsuit settlement specifically covers certain 2011-2013 RAM 1500 trucks and some other platforms.

3. The TIPM bypass alternative. Aftermarket suppliers offer "TIPM bypass kits" that install an external relay (Bosch 5-pin standard relay) routed to the fuel pump, bypassing the failed internal relay in the TIPM. Cost: $60-$200 for kit. Installation: about 30-60 minutes; involves running new wiring from TIPM to external relay socket. This is a popular DIY alternative to expensive TIPM replacement on older vehicles where TIPM replacement cost exceeds vehicle value. Note: not all P0232 codes will clear with the bypass — the PCM still monitors the TIPM signal in some cases.

Chrysler / RAM action plan: Step 2 listening test confirms pump-runs-after-key-off (TIPM-failure symptom is identical to external relay failure). Check VIN with Chrysler customer assistance for class-action settlement coverage BEFORE paying for diagnosis or repair. If not covered: choose between TIPM replacement ($400-$1,200 OEM) or external bypass kit ($60-$200 DIY). On older RAM 1500 / Jeep Grand Cherokee (2011-2013) where TIPM is failing, the bypass kit is often the most economical fix. Plan $60-$1,200 depending on path chosen.

How to check for a TSB or recall: Visit NHTSA.gov ↗, enter your VIN. Search for "P0232," "fuel pump," "TIPM," or "FPDM" + your specific platform name. Notable: Chrysler TIPM class-action settlement may cover 2011-2013 RAM 1500 fuel pump issues; multiple Ford F-150 FPDM water intrusion TSBs; some Ford TSBs cover free water shield installation. Some platforms have extended warranty coverage worth $200-$1,000.

Should You DIY or Call a Mechanic?

DIY If You…

✓ Can listen for fuel pump after key-off (anyone with ears can do this)
✓ Own basic tools (fuse puller, multimeter)
✓ Can identify fuel pump relay in your fuse box (owner's manual)
✓ Comfortable performing relay swap test (literally pulling and reinserting relays)
✓ Own OBD2 scanner with bidirectional control
✓ Want to save $200-$700 on shop diagnostic fees

Use a Mechanic If…

→ Pump needs replacement (tank drop on older vehicles is significant labor)
→ Vehicle is Chrysler/Dodge/RAM with TIPM-related P0232 (specialized knowledge)
→ Multiple fuel system codes set together (system-level issue)
→ Vehicle under powertrain or emissions warranty (free coverage possible)
→ Fuel pump or FPDM access requires specialized tools
→ Limited space / equipment for major fuel system work

Never authorize fuel pump replacement without documented relay swap test results. P0232 is so commonly a $15 relay that any shop quoting expensive fuel pump or FPDM work without first performing the relay swap test is either uninformed or padding the bill. Required from any shop before parts replacement over $100: documented key-off listening test results, relay swap test results, FPDM PWM duty cycle measurements (if Ford), wiring inspection notes. If "we replaced the fuel pump and the code cleared" is the entire diagnostic record, you may have overpaid by $300-$700 — and the new pump may fail again within weeks if the original problem (stuck relay) wasn't addressed. Get a second opinion if expensive work is quoted without documented testing.

Frequently Asked Questions

Can I drive with a P0232 code?

Limited driving only — and only to reach a repair location. P0232 indicates a fuel pump circuit fault that can cause hard starting, sudden stalling, or unpredictable engine behavior. The most dangerous symptom: if the relay is stuck closed, the fuel pump runs continuously even after key-off — eventually draining the battery overnight and potentially overheating the pump leading to pump failure. Engine stalling in traffic is a safety risk. Short drives at low speeds to home or repair location are usually acceptable; avoid highway driving, towing, or hills. If the engine has stalled multiple times or won't start reliably, don't risk driving — tow to repair location. The relay-stuck scenario also creates fire risk in extreme cases (continuous pump operation generates heat in a flammable environment).

Why does my fuel pump keep running after I turn off the key?

This is the classic P0232 symptom — and the diagnostic giveaway. The fuel pump relay controls power to the pump; when functioning properly, it opens (cuts power) when the key turns off, stopping the pump within 1-2 seconds. If the relay's internal contacts have welded closed from age or electrical arcing, it stays in the ON position even when the PCM commands OFF. The pump continues running until you disconnect the battery. About 40-50% of P0232 cases are exactly this scenario. The fix: replace the relay with an OEM unit ($10-$30 part, 5 minutes installation). Confirm the diagnosis with the relay swap test — swap the suspect fuel pump relay with an identical relay nearby (horn, headlamp, A/C); if the problem moves to that other circuit, the relay is confirmed bad.

How much does it cost to fix P0232?

Widely variable — but most cases are inexpensive when diagnosed correctly. Fuel pump relay (OEM): $10-$30 DIY, $50-$150 at shop (fixes 40-50% of cases). Fuel pump fuse: $1-$5. Wiring repair: $15-$60. Fuel Pump Driver Module (FPDM): $150-$400 part + $40-$80 DIY labor savings vs. $300-$600 at shop. Inertia switch (Ford): $30-$80 part + $50-$150 labor. Fuel pump assembly replacement (if pump itself failed): $150-$500 part + significant labor ($300-$800 at shop, $0-$100 DIY tools). PCM hardware failure (rare): $800-$1,500. About 40-50% of P0232 cases resolve under $50 because they're stuck relays. The biggest cost-saver: do the free key-off listening test (Step 2) and the relay swap test (Step 4) BEFORE paying any shop diagnostic fee.

Will P0232 damage my fuel pump?

Yes — and this is the urgency. A stuck-closed relay keeps the fuel pump running continuously, including after key-off and during long parking periods. Fuel pumps are designed for intermittent duty (running while engine is operating); continuous operation generates excessive heat in the pump motor and can prematurely fail the pump itself. If P0232 is left unresolved for weeks, the original $15 relay problem can cascade into a $500 pump assembly problem. Additionally, continuous pump operation drains the battery overnight and can over-pressurize the fuel rail, potentially damaging fuel injectors or pressure regulator. Address P0232 within days, not weeks — the diagnosis is cheap and easy, and the consequences of delay escalate fast.

What scanner do I need to fix P0232?

You need a scanner with bidirectional fuel pump activation, live FPDM PWM data, and broad platform coverage. The iCarzone UR1000 is a 7-inch Android tablet diagnostic scanner at $499.99 designed exactly for P0232 diagnosis. Key features: bidirectional fuel pump activation (commands pump on/off so you can verify mechanical response without cranking engine), live data graphing of FPDM PWM duty cycle (should be 25-50% at idle, ramping with demand; stuck at 90%+ indicates FPDM failure), live fuel rail pressure monitoring (verifies pump output after repair), broad manufacturer-specific coverage including Ford F-150 (FPDM-equipped platforms), Chevy Silverado, Chrysler/Dodge/RAM (TIPM-equipped platforms — common P0232 source), Toyota, Honda, BMW, and Mercedes. The bidirectional control is essential — without it you're guessing whether the pump is working; with it you can isolate whether the fault is electrical (circuit) or mechanical (pump itself).

What's the difference between P0230, P0231, P0232, and P0233?

All four are fuel pump circuit codes in different failure modes. P0230 = Fuel Pump Primary Circuit Malfunction (general fault in the control side — between PCM and relay; can be either too low or no signal). P0231 = Fuel Pump Secondary Circuit Low (voltage too low on pump-side circuit — opposite of P0232; usually open circuit or relay not closing when commanded). P0232 = Fuel Pump Secondary Circuit High (this article — voltage too high; relay stuck closed or shorted to power). P0233 = Fuel Pump Secondary Circuit Intermittent (comes and goes; usually a chafed wire or loose connector). Pattern recognition: P0230 alone = control/PCM-side issue; P0231 or P0232 alone = pump-side circuit issue; P0231 + P0232 together = chafed harness shorting between control wire and battery voltage; P0233 alone = intermittent connection that needs wire-wiggle testing.

Why does my Ford F-150 keep getting P0232?

Ford F-150 has three primary P0232 root causes that are well-documented. (1) FPDM (Fuel Pump Driver Module) water intrusion: The FPDM on F-150 is located on the frame rail near the fuel tank — exposed to road water, snow melt, and rust. Internal corrosion from water intrusion is a very common P0232 trigger on F-150s with 60,000+ miles. Diagnosis: visually inspect FPDM for water staining or corrosion; replace with updated module + add water shield ($150-$300 + about 30 minutes labor). (2) Inertia switch tripped: F-150s have an inertia fuel cutoff switch (trunk rear corner or under dash) that activates during collisions but can sometimes trip from rough roads or even slamming the trunk. Reset by pressing the button (button should stay depressed). (3) Stuck fuel pump relay: Same as other vehicles — relay contacts weld closed; swap test confirms; replace for $15. Always check FPDM water intrusion first on F-150 — it's the dominant cause.

Why does my Chrysler/Dodge/RAM keep getting P0232?

Chrysler/Dodge/Jeep/RAM platforms have a unique P0232 cause: the TIPM (Totally Integrated Power Module). TIPM is an electronic module that replaced traditional separate relays — it controls fuel pump, ignition, and many other circuits through internal solid-state relays. On 2007-2013 Dodge/Chrysler platforms (especially RAM 1500 and Jeep Grand Cherokee), the internal fuel pump relay inside the TIPM is a documented failure point. Symptoms identical to a stuck external relay (pump runs after key-off, P0232), but the 'fix' is much more expensive — TIPM replacement runs $400-$1,200 OEM, or aftermarket external relay bypass kits exist ($60-$200) that route the fuel pump through a traditional external relay. Important: there's a documented class-action lawsuit settlement for some Chrysler TIPM issues — check your VIN at Chrysler customer assistance to see if you qualify for free or reduced-cost TIPM replacement before paying out of pocket.

Written & verified by

iCarzone Tech Team Verified

Automotive Diagnostic Specialists

Our team of ASE-certified technicians and OBD-II diagnostic engineers review every article for technical accuracy. Content is based on hands-on diagnostic experience across domestic, Asian, and European vehicle platforms.

10+ years diagnostic experience ASE Certified Last reviewed: June 2026

Cart0 items

P0232 Code: Check the Fuel Pump Relay Before the Pump Itself
