P00FE Code: Diagnose a Restricted EVAP Vapor Line

What Does the P00FE Code Mean?

P00FE is the diagnostic label for EVAP System Fuel Tank Vapor Line Restricted/Blocked. The monitored route may include tank vapor lines, rollover or check valves, a charcoal canister, purge and vent plumbing, and special isolation hardware on some hybrid or PHEV systems. It is a monitor result, not a parts order, and it does not by itself prove the canister, purge valve, vent valve, pressure sensor, fuel cap, or tank is the failed part.

A blocked path is inferred from pressure changes while valves are commanded; a stuck valve, kinked hose, saturated canister, biased sensor, or plumbing error can imitate the same response. The useful distinction is between a real physical restriction, an incorrectly commanded or stuck valve, and false pressure evidence from a sensor or circuit problem. That distinction determines whether the next test belongs at a connector, a power or ground path, a control signal, a hydraulic or mechanical system, or an operating-condition check.

Fuel level, temperature, ambient pressure, refueling history, valve commands, and multiple pressure sensors may affect enable criteria and interpretation. A scan tool cannot replace the current wiring diagram, connector view, service precautions, and approved test method. Do not import limits or component locations from another model year.

P00FE Symptoms, Severity, and Driving Safety

P00FE is usually an emissions and refueling concern, but fuel odor, leakage, tank deformation, excessive pressure/vacuum symptoms, or damaged high-voltage vehicle hardware increase urgency.

P00FE Causes and the Evidence That Separates Them

A sound P00FE diagnosis must fit the stored conditions and companion codes. The monitor judges pressure behavior, so prove the plumbing and commanded valve states before treating a pressure-sensor reading as physical truth.

Do not use high-pressure air to “clear” an EVAP line; it can damage the tank, valves, canister, and sensors and release fuel vapor. Test the failed state when possible, document the result, and replace a part only after measured evidence supports it.

Using MA500 as an Electrical Baseline for P00FE

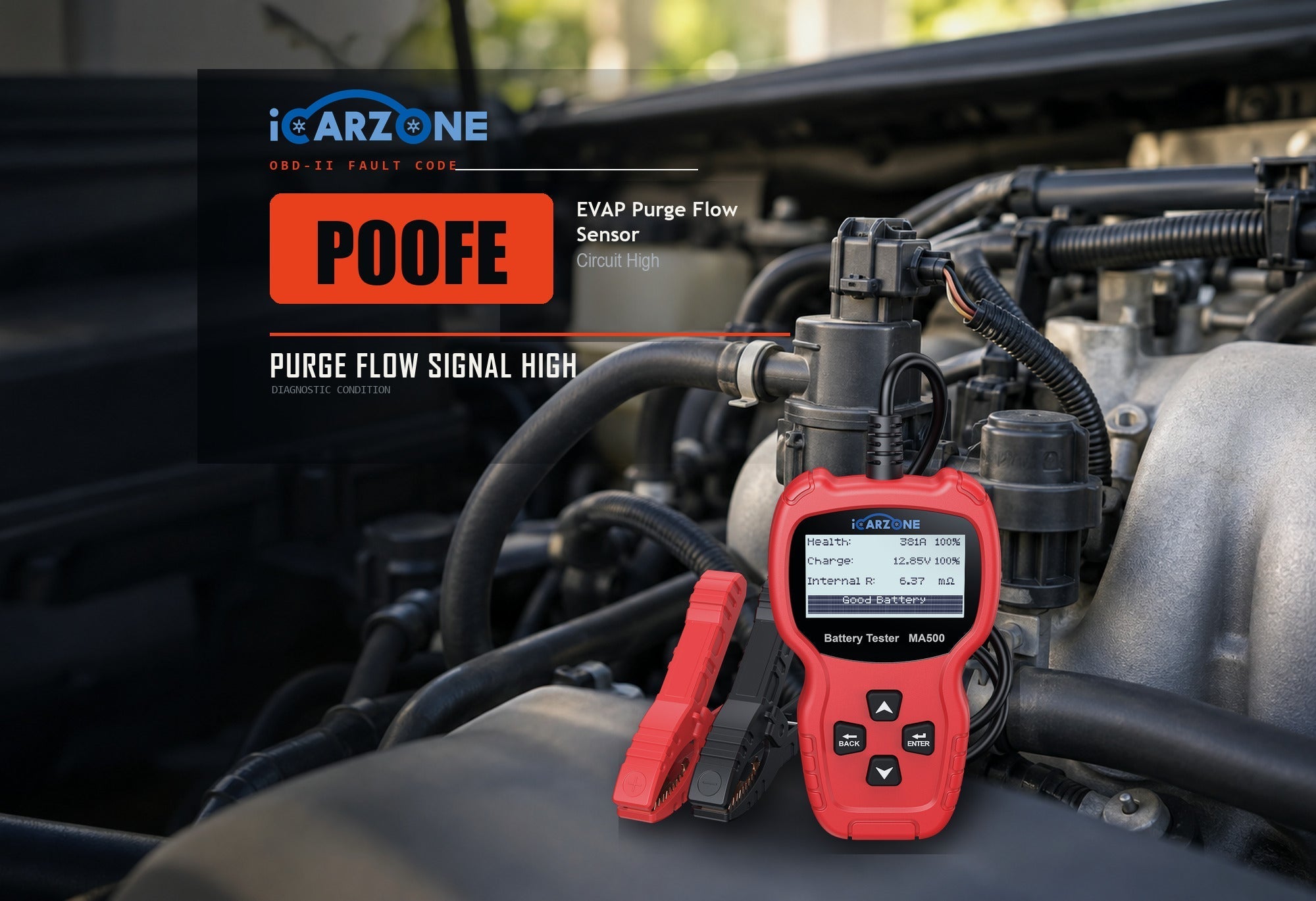

The iCARZONE MA500 12V/24V Battery & Charging System Tester with SOH/SOC checks battery SOH/SOC, internal resistance, ripple, cranking, and 12V/24V charging. Use it only to document supply stability during P00FE diagnosis.

MA500 does not read or clear engine fault codes. It provides no freeze frame, ECU live data, or actuator commands. Use separate scan equipment and VIN-specific service information.

EVAP diagnosis requires intrinsically safe practices, low-pressure smoke/flow equipment approved for fuel vapor, ventilation, and exact pressure limits. Hybrid/PHEV tank isolation can retain pressure after key-off. Its battery results cannot identify the fuel-tank vapor line and EVAP pressure-control path or replace the specified loaded test.

LOW-VOLTAGE SUPPORT TOOL

iCARZONE MA500 12V/24V Battery & Charging System Tester with SOH/SOC

12V/24V battery health · cranking · charging analysis

Use MA500 only to document the battery, cranking and charging baseline. A separate scan tool and OEM procedure are required to read P00FE, capture tank pressure, purge/vent/isolation commands, fuel level, temperature, voltage and EVAP fault order, and prove the fault.

$32.99

View MA500 Details

Checked September 4, 2026: the public page showed $32.99 USD, no compare-at price, and available status. Recheck the offer, stock, and compatibility.

How to Diagnose P00FE in 6 Evidence-Based Steps

Use this order to preserve the event and avoid parts guesses. Begin by correcting the workbook definition conflict, then preserve the vehicle’s pressure state before opening the cap or disconnecting lines. Let each result choose the next OEM test.

P00FE Quick Diagnostic Path

• 1

  Save the Complete Event

  • Record code status, freeze frame, tank pressure, purge and vent commands, fuel level, ambient/temperature data and EVAP companion codes, voltage, and first-failure order.
  • Note companion supply, reference, communication, or performance faults.
• 2

  Confirm the Exact Hardware

  • Use the VIN to identify fuel-tank vapor line and EVAP pressure-control path, its controller, connectors, shared paths, and enable conditions.
  • Do not borrow terminals, limits, or locations from another application.
• 3

  Inspect the Accessible Path

  • Safely inspect locks, seals, corrosion, routing, heat or fluid exposure, grounds, and prior repairs.
  • Preserve the failed state; do not pierce seals or spread terminals.
• 4

  Compare Command and Result

  • Observe tank pressure, purge and vent commands, fuel level, ambient/temperature data and EVAP companion codes during a safe reproduction of the refueling, key-off, purge, or pressure-monitor condition stored with the code.
  • Scan data narrows the branch but does not replace the specified physical test.
• 5

  Test the Leading Branch

  • Follow the OEM order for loaded power, ground, signal, control, continuity, isolation, and system tests.
  • Record each result and prove external wiring before parts.
• 6

  Repair and Verify

  • Correct only the proven circuit, component, mechanical, or applicable calibration fault.
  • Restore all disturbed items, run the specified monitor, and rescan.

How to Fix P00FE and Verify the Repair

Record the proven fault and repair. Confirm atmospheric sensor plausibility, correct valve response, unobstructed approved flow, normal refueling, no leaks or fuel odor, and completed EVAP monitor without P00FE.

Clear codes after repair, run the specified monitor or road test, and rescan every relevant module. A short idle without the warning is not enough.

P00FE OEM Differences and DIY Limits

Tank construction, vent routing, pressure sensors, isolation valves, monitor direction, fuel-level window, and refueling logic vary by platform. Match the OEM description, diagram, terminals, test conditions, and bulletins to the full VIN.

Hybrid/PHEV tanks can be sealed and pressurized by design, requiring specific depressurization and scan routines. Stop before unverified probing, programming, hazardous work, or disassembly requiring special tools.

Related EVAP Flow, Leak, Vent, and Purge Guides

Companion codes can change the P00FE test order. Use these verified guides as context, then confirm shared circuits and systems in VIN-specific service information.

For other stored faults, use the iCARZONE OBD-II fault-code center.

Frequently Asked Questions About P00FE

Sources and Technical Review Notes

• Nissan P00FE EVAP Service Bulletin — Identifies P00FE as an EVAP control-system fault in a limited Sentra application and provides model-specific tank guidance.
• Mitsubishi P00FE Diagnostic Procedure — Defines P00FE-00 as Fuel Tank Vapor Line Restricted and shows a multi-sensor, multi-valve application-specific diagnostic strategy.
• Mitsubishi PHEV P00FE Diagnostic Procedure — Defines EVAP System Fuel Tank Vapor Line Restricted/Blocked for a sealed PHEV tank architecture.

iCARZONE

Technical sources checked September 4, 2026. This is a source-based diagnostic guide, not a report of a hands-on vehicle repair. Confirm tank architecture, valve sequence, pressure limits, safe smoke/flow tests, and bulletin applicability for the exact VIN.
