P02E0 Code: Diesel Intake Air Flow Control Circuit/Open
P02E0: Check Control Before Parts
Separate the actuator circuit from airflow measurements and valve movement.
DIAGNOSTIC FOCUS
- FAULT TYPE
- Diesel Intake Air Flow Control Circuit/Open
- FIRST CHECKS
- Actuator identity, connector retention and the specified supply path
This is not a direct diagnosis of the mass airflow sensor or a command to replace the EGR valve.
P02E0 means Diesel Intake Air Flow Control Circuit/Open. This is not a direct diagnosis of the mass airflow sensor or a command to replace the EGR valve. Save the full fault record, identify the reporting controller and use the current vehicle-specific procedure.
Preserve the scan, locate the intake-air control actuator from the exact engine diagram, and follow its circuit checks before considering cleaning or replacement.
What Does the P02E0 Code Mean?
P02E0 names an electrical circuit/open concern for diesel intake air flow control. Begin with the controlled device identified by the engine’s service information. The description concerns the ability to control intake air; it is different from a sensor reporting the amount of air entering the engine.
Depending on the engine design, the diagnostic path can involve an intake control valve, its actuator electronics, power supply, return and command or feedback connections. The generic code does not provide a pinout or establish which of those functions share a connector. Match the component before applying a meter or disconnecting a plug.
A valve that fails to move and a valve that receives no valid electrical command can look similar in a live-data graph. The next decision requires circuit evidence and, when prescribed, a safe functional test. Carbon deposits may be relevant to movement, but visible deposits do not by themselves prove the cause of an electrical circuit/open code.
Record the complete code, any suffix, reporting module and current/history status. The same short description does not establish a common circuit layout across vehicles.
Compare available desired and actual position only where the controller exposes valid data. A commanded position proves a request exists; it does not prove the actuator received usable power or moved.
Save available freeze frame and note starting condition, engine load, air-control data and any reduced-power message. A reset or disconnected connector can change the evidence before the cause is found.
P02E0 Symptoms, Severity, and Driving Safety
Record the exact code and any separate position, supply or airflow faults.
An air-control issue may accompany restricted operation; note the message without assuming a specific fail-safe strategy.
Describe when acceleration changes occur. Fuel, boost and EGR conditions may also need their own diagnostic checks.
Record the timing and engine temperature. The symptom alone does not identify the actuator circuit as the cause.
Heat or vibration can expose a connection problem that a stationary visual inspection misses.
A stored circuit fault can still require diagnosis even if the current driving impression seems normal.
Arrange diagnosis and follow the vehicle’s warning instructions. Avoid towing or demanding operation while reduced power or poor engine control remains unexplained. A generic code does not establish a safe distance or prove that continued operation is harmless.
P02E0 Causes and the Evidence That Separates Them
The following are possible diagnostic branches, not a ranking of failure rates. Their relevance depends on the installed intake-air actuator. Begin with the branch identified by the OEM decision tree and the complete code pattern.
Loose actuator connection
Poor retention or damaged terminals can interrupt the intended circuit.
How to prove it: Inspect the correct connector, terminal condition and sealing using the approved method.
Check firstPower or return problem
The actuator may not have the supply or return needed for control.
How to prove it: Test the specified path under the required load and power state.
Check firstOpen or damaged command wiring
A broken conductor or damaged insulation can interrupt communication or control.
How to prove it: Identify the actual circuit type before performing isolated wiring tests.
Verify directlyActuator electrical defect
Internal electronics or a motor winding may fail its specified test.
How to prove it: Prove external connections and follow the exact actuator decision tree.
Verify directlyValve movement restriction
A mechanical restriction may coexist with a circuit fault or produce a separate performance symptom.
How to prove it: Establish electrical control first, then inspect movement only by the prescribed safe procedure.
Verify directlyWrong component or setup
An incompatible replacement or omitted required setup may produce abnormal operation.
How to prove it: Confirm part application and service requirements rather than performing resets by trial and error.
Final branchIf the warning followed intake cleaning, actuator replacement, battery service or harness repair, compare the timing with the original complaint. Recheck disturbed connections and part compatibility, but do not treat recent work alone as proof of causation. A component should earn replacement through a failed test.
Using UR1000 During P02E0 Diagnosis

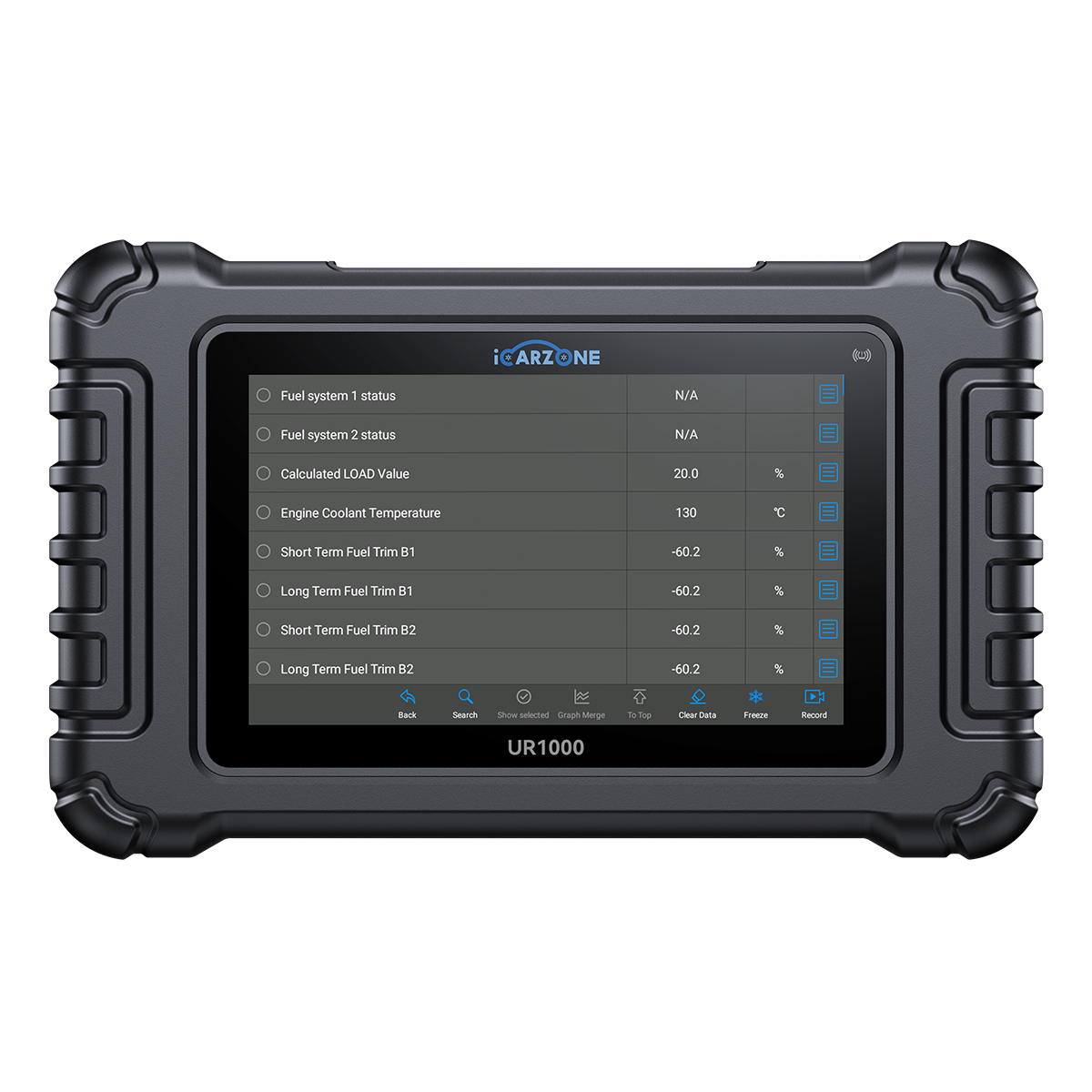

On supported vehicles, iCARZONE UR1000 retrieves accessible faults, available freeze frame and live data. Save the P02E0 event before clearing it so the technician has the original evidence.
The official product page describes system diagnostics and bidirectional control. Confirm the exact VIN, controller, software and requested function before purchase. Every PID, active test or adaptation is not guaranteed on every vehicle.
Use supported engine data to compare requested control with available position feedback and companion faults. UR1000 does not guarantee a particular intake-actuator test for every diesel. A missing active-test menu is not evidence that the actuator is defective.
iCARZONE UR1000 Bidirectional Scan Tool with ECU Coding
Save the intake-control event and supported command/feedback data while circuit tests establish why the actuator does not respond.
Use the prescribed external equipment and current service information. A missing menu is a coverage question, not proof of failure. Price checked September 27, 2026; confirm the current offer on the product page.
How to Diagnose P02E0 in 6 Steps
Use these six decisions alongside the VIN-specific procedure. Record conditions, measurements and comparison limits; never substitute another vehicle’s specification.
P02E0 Quick Diagnostic Path
-
1
Save the complete original event
- Save all module faults, descriptions, suffixes, status and available freeze frame before clearing P02E0. Preserve companion-code timing when investigating a shared condition.
- Document starting condition, engine load, air-control data and any reduced-power message. Note whether the warning preceded intake cleaning, actuator replacement, battery service or harness repair. Do not reproduce an unsafe symptom.
-
2
Confirm the actual intake component
- Use the engine code and wiring information to identify the intake-air control device and its connections.
- Do not choose the MAF sensor or EGR valve just because both influence airflow.
-
3
Check the disturbed and shared paths
- Inspect connector retention, wiring damage and the actuator’s specified supply and return.
- Compare companion supply or communication faults before treating each component as an independent failure.
-
4
Prove the electrical circuit
- Use approved adapters and the OEM power-state instructions for voltage, load or isolated wiring checks.
- Do not inject battery voltage into a signal or network terminal. A generic pin count cannot identify a safe test point.
-
5
Evaluate movement only after circuit checks
- Where permitted, compare commanded and actual response and inspect the valve for the condition identified by the procedure.
- Never force an energized valve or use indiscriminate solvent cleaning as a substitute for circuit diagnosis.
-
6
Verify the repair under the right conditions
- Repeat the failed check, complete any required setup and compare the result with the original evidence. An extinguished lamp alone is not verification.
- Follow the OEM verification process and retain the final scan. Explain incomplete checks or remaining faults before releasing the vehicle.
How to Fix P02E0 and Verify the Repair
Restore a failed connection
Repair the proven terminal, harness or supply defect and secure the correct routing.
Replace a proven electrical failure
Use the compatible actuator or service assembly only after the external circuit passes.
Correct a verified restriction
Use an approved cleaning or mechanical repair procedure when movement evidence identifies the need.
Complete required setup
Apply the specified initialization or learning only when the repair requires it, then verify actual response.
Diagnostic time
VIN-specific quoteRequest a quote that identifies the test needed to distinguish a connection or power fault from an actuator or movement defect. A code scan alone is not completed diagnosis.
Wiring and access
VIN-specific quoteQuote proven terminal, harness and access work separately. Correct the cause of heat, abrasion or contamination to reduce repeat damage.
Proven component repair
VIN-specific quoteRequest the exact part, its failed test and required installation items. The correct service unit depends on the vehicle and demonstrated defect.
Setup and final verification
VIN-specific quoteInclude setup only when required, plus final verification. Local rates and taxes vary; these are alternative paths, not four automatic charges.
Ask which finding supports each proposed P02E0 repair. Separate confirmed defects from conditional work and retain the original and final reports.
A returning electrical code after cleaning should prompt circuit review rather than repeated cleaning. Compare full descriptions and fault status to determine whether the original problem or a new performance issue remains.
P02E0 OEM Differences and DIY Limits
The Ford investigation DTC listing cited below supports the generic P02E0 wording. It is a code-label reference here, not evidence that the listed gasoline vehicle groups use a particular diesel intake actuator or repair procedure. No model-specific replacement recommendation is inferred from that table.
Locate the air-control actuator using the engine diagram; distinguish it from air-measuring sensors and EGR control.
Separate the requested actuator command, reported position and independently verified electrical or mechanical response.
The proven circuit must pass its test and the actuator must respond correctly under the manufacturer’s verification conditions.
The vehicle manufacturer’s engine procedure must supply the actuator identity, circuit design and test conditions. A bulletin for a different engine or intake assembly is not sufficient evidence for parts or software work.
- Save the complete scan and warning text without clearing it.
- Record the conditions and service history accurately.
- Inspect only safely accessible areas under the specified power state.
- Follow the owner manual response to every active warning.
- Use qualified assistance when symptoms make operation unsafe.
- Do not jump, backfeed or force an unidentified circuit or actuator.
- Use the exact isolation procedure and specified test equipment.
- Leave required disassembly, learning or programming to equipped personnel.
Frequently Asked Questions About P02E0
What does P02E0 mean?
Is P02E0 a MAF sensor code?
Will cleaning the intake valve fix it?
Can I drive with P02E0?
Should the EGR valve be replaced with the intake actuator?
Should I clear P02E0 before diagnosis?
Can UR1000 help diagnose P02E0?
What confirms a successful P02E0 repair?
Sources and Technical Review Notes
- Ford submission in NHTSA PE13-003, DTC listing — Generic P02E0 wording only; the listed vehicle groups are not used to claim a diesel application or repair.
