P0654 Code: Engine RPM Output Circuit Diagnosis

P0654 engine RPM output circuit diagnostic illustration
ENGINE SPEED OUTPUT CIRCUIT

P0654: Trace RPM From Source to Receiver

Keep the engine-speed input separate from the output that supplies another system.

Updated October 8, 2026About 11 min readBy iCARZONE

DIAGNOSTIC FOCUS

OUTPUT CIRCUIT
FAULT TYPE
Engine RPM Output Circuit
FIRST CHECKS
Reporting module, output recipient and available RPM data

This code does not automatically mean the crankshaft sensor, tachometer or engine controller has failed.

QUICK ANSWER

P0654 means Engine RPM Output Circuit. P0654 does not automatically mean the crankshaft sensor, tachometer or engine controller has failed. Save the full fault record, identify the reporting controller and use the current vehicle-specific procedure.

Save the complete scan and identify who sends and receives the RPM information on this vehicle. Compare those records before selecting a physical circuit test.

What Does the P0654 Code Mean?

P0654 identifies an engine RPM output circuit concern. RPM describes engine rotational speed, but the word output is central to diagnosis: a controller’s information sent onward is a different part of the system from the sensor input used to determine that information.

Do not assume every vehicle routes the output through the same wire or to the same recipient. Identify the reporting module and the actual architecture in the service information. Where the manufacturer uses a dedicated signal, its waveform and terminal tests differ from those used for a networked data path.

A stationary tachometer needle and a missing RPM value in the engine controller are different observations. Compare the source data, receiving-system data and actual engine behavior. The goal is to identify where valid information is lost or distorted, not to replace the most visible component in the chain.

Identify the actual monitor

Record the complete code, any suffix, reporting module and current/history status. The same short description does not establish a common circuit layout across vehicles.

Separate the evidence

A scan tool reads data available from a controller. Matching values in two modules can help locate a problem, but they do not replace the prescribed signal or network test at the relevant boundary.

Keep the original conditions

Save available freeze frame and note actual engine behavior, tachometer response, available RPM PIDs and communication or supply faults. A reset or disconnected connector can change the evidence before the cause is found.

Important distinction: An engine-speed output fault is not the same diagnostic branch as a crankshaft-position input fault or a vehicle-speed sensor fault.
P0654: Engine RPM outputCrank input: separate pathVehicle speed: different quantityRecipient: identify by VIN

P0654 Symptoms, Severity, and Driving Safety

Engine warning
Save the complete code and reporting module instead of diagnosing from the dashboard icon alone.
Tachometer problem
Record whether the display is missing, unstable or inconsistent, and check whether it is the affected recipient on this vehicle.
Other module complaints
A receiving controller may have related data or communication faults that help locate the interrupted path.
Normal engine operation
An output problem may coexist with an engine that appears to run normally; this does not prove every recipient has valid data.
Unstable running
If actual engine operation is also abnormal, diagnose input and engine-control evidence separately rather than attributing everything to the display.
Intermittent event
Recent wiring, battery or accessory work can help define the timeline, but does not establish the cause by itself.

Arrange diagnosis and follow the vehicle’s warning instructions. Establish whether the problem affects only a display or also a system that uses engine-speed information. A generic code cannot guarantee that continued driving is safe or predict a remaining distance.

Stop safely if the engine stalls unpredictably, propulsion is unreliable or other critical warnings appear. Do not watch diagnostic graphs while driving.

P0654 Causes and the Evidence That Separates Them

The following are possible diagnostic branches, not a ranking of failure rates. Their relevance depends on the installed engine-speed output. Begin with the branch identified by the OEM decision tree and the complete code pattern.

1

Output connector or harness defect

A damaged connection can prevent the receiving system from obtaining the intended signal.

How to prove it: Trace the identified path and test its terminals and conductors by the approved method.

Check first
2

Shared power or ground issue

A source or recipient may not operate reliably with an impaired supply.

How to prove it: Compare companion faults and perform the specified loaded power and return checks.

Check first
3

Source output-stage problem

The engine controller may have valid input data but an abnormal designated output.

How to prove it: Verify the source information and external circuit before following a controller-repair branch.

Verify directly
4

Recipient or interface fault

The receiving device may not interpret valid information correctly.

How to prove it: Prove what reaches the receiver and check its own supplies and diagnostic procedure.

Verify directly
5

Network-path condition

On an applicable architecture, data transfer or communication faults may be relevant.

How to prove it: Use the actual topology and OEM network procedure; do not assume a universal bus or termination test.

Verify directly
6

Incorrect installation or configuration

An incompatible replacement or added accessory may alter the output path.

How to prove it: Compare wiring and configuration with the approved vehicle arrangement before changing modules.

Final branch

If the warning followed battery, instrument-cluster, engine-controller or aftermarket-accessory work, compare the timing with the original complaint. Recheck disturbed connections and part compatibility, but do not treat recent work alone as proof of causation. A component should earn replacement through a failed test.

Using JU2000 MAX During P0654 Diagnosis

On supported vehicles, iCARZONE JU2000 MAX retrieves accessible faults, available freeze frame and live data. Save the P0654 event before clearing it so the technician has the original evidence.

The official product page describes system diagnostics and bidirectional control. Confirm the exact VIN, controller, software and requested function before purchase. Every PID, active test or adaptation is not guaranteed on every vehicle.

Use supported JU2000 MAX module scans and RPM data to compare the source and receiving systems. Coverage varies by controller. The tool does not physically measure a dedicated output waveform or prove that a receiving module is defective because its PID is unavailable.

RECOMMENDED DIAGNOSTIC TOOL

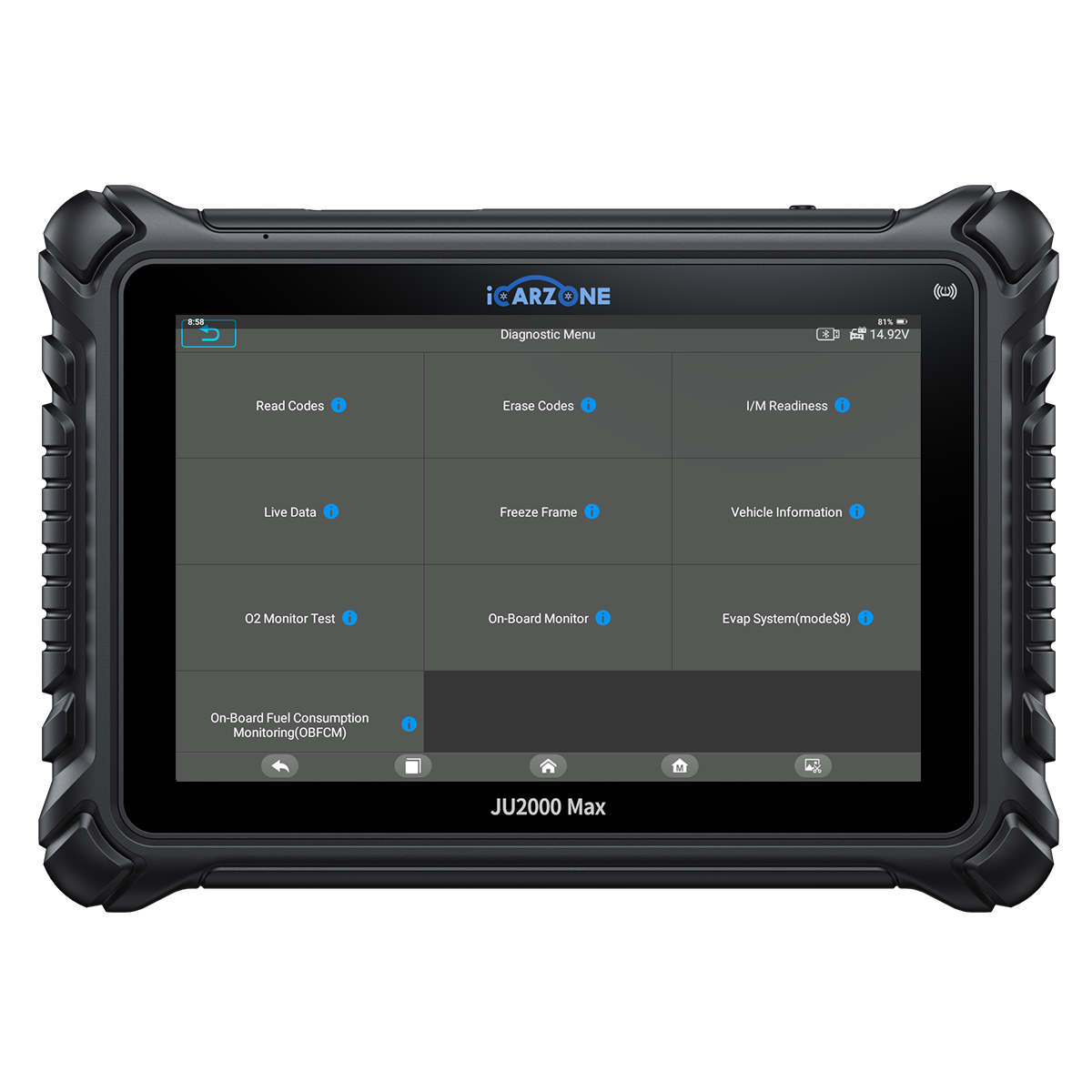

iCARZONE JU2000 MAX All-in-One Diagnostic & TPMS Kit

iCARZONE JU2000 MAX diagnostic scanner for preserving P0654 fault evidence
Full-system scan · freeze frame · supported live data

Preserve the output fault and compare supported RPM records across the relevant modules before changing sensors or instruments.

$1186.99
$1249.00
Check JU2000 MAX Coverage

Use the prescribed external equipment and current service information. A missing menu is a coverage question, not proof of failure. Price checked October 8, 2026; confirm the current offer on the product page.

How to Diagnose P0654 in 6 Steps

Use these six decisions alongside the VIN-specific procedure. Record conditions, measurements and comparison limits; never substitute another vehicle’s specification.

P0654 Quick Diagnostic Path

  • 1

    Save the complete original event

    • Save all module faults, descriptions, suffixes, status and available freeze frame before clearing P0654. Preserve companion-code timing when investigating a shared condition.
    • Document actual engine behavior, tachometer response, available RPM PIDs and communication or supply faults. Note whether the warning preceded battery, instrument-cluster, engine-controller or aftermarket-accessory work. Do not reproduce an unsafe symptom.
  • 2

    Map the signal architecture

    • Identify the reporting module, output source and intended recipient from the exact wiring and service information.
    • Do not assume P0654 always refers to a dedicated tachometer wire or always to a CAN message.
  • 3

    Compare source and recipient evidence

    • Record actual engine behavior, available source RPM data, receiving data and any display symptom.
    • If the engine controller itself lacks valid speed input, diagnose that evidence rather than treating it as a proven output-stage failure.
  • 4

    Inspect supplies and affected wiring

    • Check relevant power, return and connector conditions, including documented accessory or module work.
    • Use only the circuit or network checks appropriate to the installed architecture; do not probe an assumed universal pin.
  • 5

    Locate the failed boundary

    • Where prescribed, compare the signal at the sender and receiver using suitable equipment and the OEM procedure.
    • A controller or cluster replacement requires evidence that external wiring, supplies and configuration have been excluded as directed.
  • 6

    Verify the repair under the right conditions

    • Repeat the failed check, complete any required setup and compare the result with the original evidence. An extinguished lamp alone is not verification.
    • Follow the OEM verification process and retain the final scan. Explain incomplete checks or remaining faults before releasing the vehicle.
Keep clear of belts, fans and hot engine components. Do not connect a test lamp or battery jumper to an unidentified data output. Secure recording equipment and use a second qualified person when a safe controlled operating check is necessary.

How to Fix P0654 and Verify the Repair

01

Restore the proven output path

Repair the identified wiring, terminal or connector defect and protect its routing.

02

Correct a shared supply problem

Restore the failed power or return connection and reevaluate the affected modules.

03

Repair a proven sender or receiver

Replace or repair the supported component only after its external paths pass the required tests.

04

Correct verified setup or interference

Restore approved wiring and complete required module configuration when evidence supports that branch.

01

Diagnostic time

VIN-specific quote
Main cost driver

Request a quote that identifies the test needed to distinguish a harness or supply defect from a source or recipient module problem. A code scan alone is not completed diagnosis.

02

Wiring and access

VIN-specific quote
Main cost driver

Quote proven terminal, harness and access work separately. Correct the cause of heat, abrasion or contamination to reduce repeat damage.

03

Proven component repair

VIN-specific quote
Main cost driver

Request the exact part, its failed test and required installation items. The correct service unit depends on the vehicle and demonstrated defect.

04

Setup and final verification

VIN-specific quote
Main cost driver

Include setup only when required, plus final verification. Local rates and taxes vary; these are alternative paths, not four automatic charges.

Ask which finding supports each proposed P0654 repair. Separate confirmed defects from conditional work and retain the original and final reports.

If a display replacement does not resolve the fault, revisit what information actually reaches it. Repeatedly changing the visible instrument does not establish whether the source output or connecting path is healthy.

P0654 OEM Differences and DIY Limits

The official Autel reference identifies P0654 as engine RPM output circuit. It supplies a diagnostic label, not an OEM wiring diagram, a universal recipient or a numerical waveform specification. No particular vehicle application is inferred from that lookup table.

Identify the correct hardware

Determine which controller sends the RPM output and which system should receive it on this vehicle.

Know what the measurement represents

Compare source RPM, received RPM and the actual output-path measurement without treating them as identical evidence.

Use the right return check

The repaired path must deliver the expected information to the intended recipient and pass the OEM output-circuit verification.

The current manufacturer procedure must define the reporting module, output method, test equipment and expected response. Keep another model’s pin assignment, signal amplitude or network architecture out of the diagnosis unless the service information explicitly matches.

Reasonable DIY Checks
  • Save the complete scan and warning text without clearing it.
  • Record the conditions and service history accurately.
  • Inspect only safely accessible areas under the specified power state.
  • Follow the owner manual response to every active warning.
Professional-Level Work
  • Use qualified assistance when symptoms make operation unsafe.
  • Do not jump, backfeed or force an unidentified circuit or actuator.
  • Use the exact isolation procedure and specified test equipment.
  • Leave required disassembly, learning or programming to equipped personnel.

Related Diagnostic Code Guides

Speed, network and power guides distinguish neighboring signal problems. Vehicle speed and engine RPM are different quantities; their sensor locations and tests cannot be exchanged.

P0500
Vehicle speed sensor A
P0503
Vehicle speed sensor A intermittent/erratic/high
U0401
Invalid data received from ECM/PCM
P0560
System voltage malfunction
P0562
System voltage low
P0685
ECM/PCM power relay control circuit
P2509
ECM/PCM power input intermittent

For other stored faults, use the iCARZONE OBD-II fault-code center.

Frequently Asked Questions About P0654

What does P0654 mean?
Engine RPM Output Circuit. An engine-speed output fault is not the same diagnostic branch as a crankshaft-position input fault or a vehicle-speed sensor fault.
Does P0654 mean the crankshaft sensor is bad?
No. A speed input and a controller output are different parts of the system. Check whether the source controller has valid RPM information before choosing an input-sensor repair.
Is the tachometer always the faulty part?
No. First establish whether it is the relevant recipient and whether valid information reaches it. Wiring, supplies, the source output or another interface can require testing.
Can the engine run normally with an RPM output fault?
That can be possible depending on the architecture. Normal running does not prove the output reaches every recipient, and the code alone cannot establish a safe driving allowance.
Should I perform a generic CAN resistance test?
Only if the exact procedure calls for it on the actual network. P0654 does not establish that every vehicle uses the same data path, pins or resistance specification.
Should I clear P0654 before diagnosis?
Save codes, status, full descriptions and available freeze frame first. Clearing can erase useful context without repairing the fault. Follow the prescribed clearing and verification sequence after the cause has been established.
Can JU2000 MAX help diagnose P0654?
It can organize supported module faults and live data, subject to the exact vehicle and controller coverage. Unavailable recipient data is a coverage or access limitation, not automatic proof of module failure. Confirm the requested function; a scan or erase command cannot replace the required physical tests.
What confirms a successful P0654 repair?
The repaired path must deliver the expected information to the intended recipient and pass the OEM output-circuit verification. Keep the final measurements and scan. If the relevant monitor or operating condition has not yet been checked, report that limitation instead of describing the repair as fully verified.

Sources and Technical Review Notes

Bottom line: Find where engine-speed information should travel, compare source and receiver evidence and prove the failed boundary. Do not turn an output-circuit code into an unsupported crank-sensor or cluster diagnosis.
iCARZONE
iCARZONE

Technical sources checked October 8, 2026. This is a source-based diagnostic guide, not a report of a hands-on vehicle repair. Confirm component identification, monitor conditions, test limits and service applicability for the exact VIN. This guide makes no universal coverage or repair-outcome promise.

Educational diagnostic guidance, not a record of hands-on repair or a replacement for current OEM procedures. Observe engine-bay and sensitive-data-circuit precautions. Never improvise power injection into an output or network terminal.
