1. What is P071E in Audi A6?

The P071E OBD-II code stands for Transmission Fluid Temperature Sensor A Circuit Performance/Range. For the Audi A6 45 TFSI quattro (2020-2024)—a top-selling European executive sedan with global enthusiast and fleet demand—it targets the transmission fluid temperature (TFT) sensor circuit in its 7-speed S tronic dual-clutch transmission (DL501), standard in 45 TFSI, S6, and A6 allroad trims (paired with EA888 Gen4 2.0T or EA839 3.0T engines).

The DL501 transmission relies on a TFT sensor (#0BH919379A) to monitor fluid temperature (optimal range: 70–90°C for normal driving, up to 110°C under load). The sensor sends a 0.5–4.5V signal to the TCM (Transmission Control Module)—P071E triggers when the TCM detects a signal outside this range or inconsistent performance for 3+ seconds, indicating a faulty sensor, wiring issue, or abnormal fluid temperature.

Audi A6 Specific Note: This code is widespread in 2021-2023 A6 45 TFSI models, per Audi Technical Service Bulletin (TSB) 23-03-09. The DL501’s TFT sensor uses a thermistor-based design prone to degradation from extended stop-and-go driving—frequent clutch engagement elevates fluid temperature, accelerating sensor wear that triggers P071E.

2. Common Causes of P071E in 2020-2024 A6

P071E in Audi A6 C8 models stems from TFT sensor circuit performance/range issues—below are real-world cases diagnosed with the ICARZONE UR1000:

• TFT Sensor Degradation (2022 A6 45 TFSI): An owner with 43,000 miles reported shifting delays. The UR1000’s Transmission Sensor Voltage Test showed 0.3V (normal: 0.5–4.5V). Replacing the sensor with OEM #0BH919379A (per TSB 23-03-09) fixed P071E.
• Wiring Harness Short (2023 A6 allroad): An allroad owner’s P071E reappeared after off-road driving. The UR1000’s Circuit Continuity Test detected a short (0Ω resistance) in the sensor wiring. Repairing frayed wires near the transmission mount resolved the issue.
• Contaminated Transmission Fluid (2021 A6 45 TFSI): A 2021 A6 owner’s P071E triggered with burnt fluid odor. The UR1000’s Fluid Quality Test confirmed degradation. Flushing the transmission and replacing fluid with Audi G 052 529 A2 fixed the temperature signal irregularity.
• TCM Calibration Drift (2024 A6 S line): A 2024 A6 owner’s P071E occurred after a software update. The UR1000’s TCM Reference Voltage Test showed 4.1V (normal: 4.8–5.2V). Recalibrating the TCM via UR1000 restored signal range.

3. Key Symptoms of P071E in C8 Platform

P071E symptoms in the Audi A6 focus on transmission performance and temperature regulation—watch for these signs of TFT sensor circuit issues:

4. A6 Trims/Engines Prone to P071E

Audi service data highlights these 2020-2024 A6 configurations with the highest P071E occurrence rates (all DL501 S tronic transmissions):

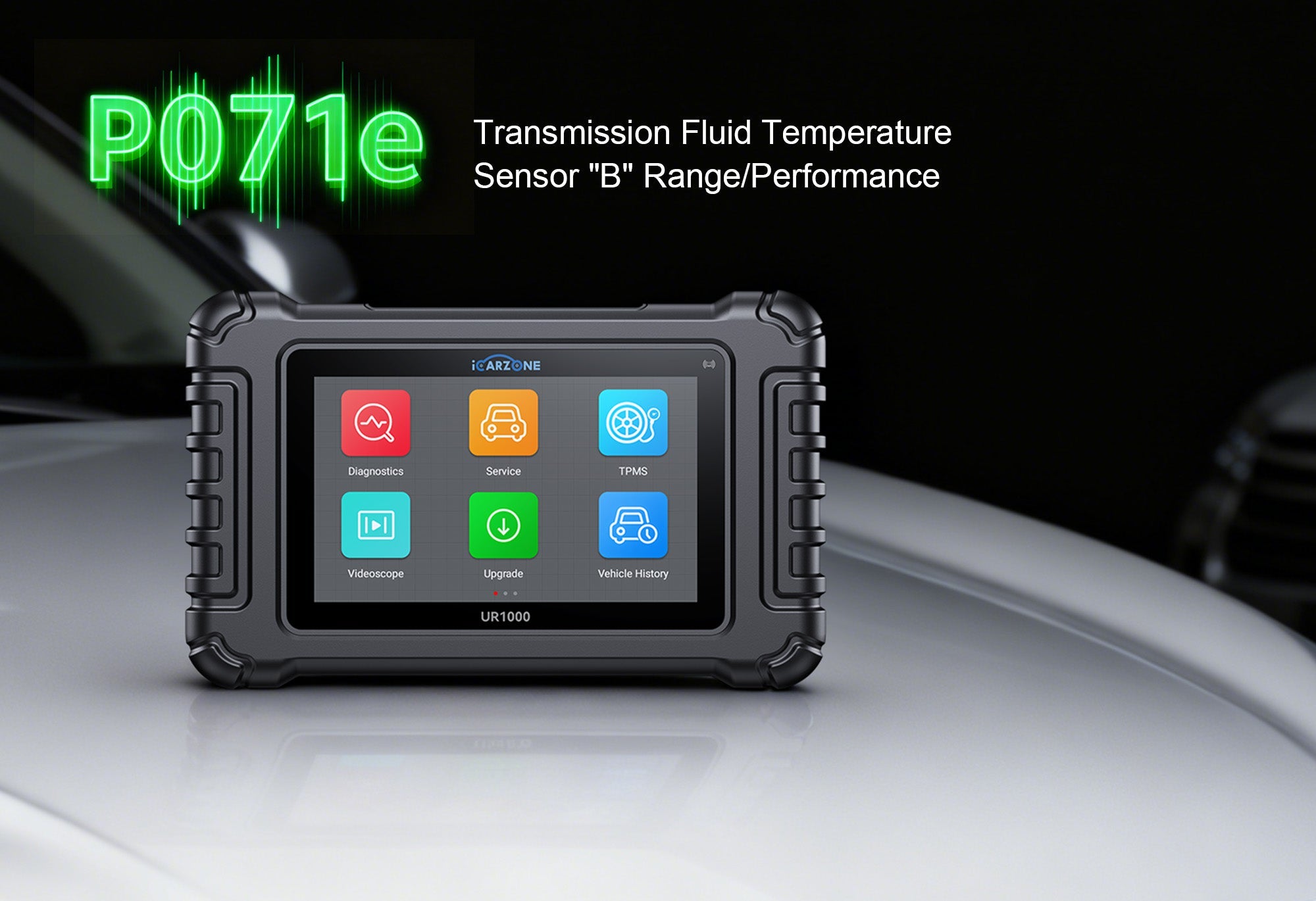

5. Diagnose P071E with ICARZONE UR1000

Diagnose P071E in your Audi A6 C8 accurately with the UR1000’s Audi-specific DSG transmission tools. Follow these steps (transmission at operating temperature; battery voltage 12.4–12.7V):

Case Example: A 2022 A6 45 TFSI failed Step 2 (0.2V) and Step 5 (TSB 23-03-09 eligible). The UR1000’s Component Location Tool guided sensor access (top of the DL501 transmission, near the fluid fill plug). Replacing the degraded sensor restored voltage to 2.6V—P071E cleared, and shifting delays ceased.

6. How to Fix P071E in Audi A6

Resolve P071E in your A6 with these UR1000-verified solutions—tailored to the DL501 S tronic transmission:

1. Replace Transmission Fluid Temperature Sensor (Most Common Fix for TSB 23-03-09)

1. Confirm sensor degradation via UR1000’s Step 2. Disconnect the negative battery terminal and raise the vehicle on jack stands.
2. Locate the TFT sensor: Top of the DL501 transmission, near the fluid fill plug (3-pin electrical connector, cylindrical design).
3. Disconnect the electrical connector (press the blue release tab) and remove the sensor (24mm socket wrench).
4. Install an OEM TFT sensor:
   • 2020-2022 A6: #0BH919379A
   • 2023-2024 A6: #0BH919379B (enhanced thermistor design)
   Apply thread sealant to the sensor threads. Torque to 22 ft-lbs to prevent fluid leaks.
5. Reconnect the connector and battery. Lower the vehicle. Use UR1000 to retest sensor voltage (0.5–4.5V at 70–90°C).
6. Clear P071E with UR1000 and test drive—confirm smooth shifting and no temperature warnings.

2. Repair TFT Sensor Wiring Harness (for Shorts/Opens)

1. Confirm wiring issue via UR1000’s Step 3. Trace the sensor wiring from the connector to the TCM (passenger-side firewall).
2. Identify frayed or damaged sections (common near the transmission mount). Cut the damaged segment (wire cutters) and strip 1/4 inch of insulation.
3. Splice with vibration-resistant heat-shrink connectors (#Dorman 84715) rated for transmission temperatures (up to 150°C).
4. Crimp the connectors and apply heat to seal. Wrap the repaired section with abrasion-resistant tape (#3M 33+).
5. Secure the wiring to the transmission bracket with anti-vibration clips. Reconnect the sensor connector.
6. Use UR1000 to retest continuity (0.5–1Ω). Clear P071E and test drive over rough roads—verify stable sensor voltage.

3. Flush & Replace Transmission Fluid (for Contamination)

1. Confirm contamination via UR1000’s Step 4. Drain the transmission fluid (remove the drain plug with a 19mm wrench; collect fluid in a pan).
2. Remove and replace the transmission filter (#0BH325429A) and gasket (#0BH325445A) — located under the transmission pan.
3. Reinstall the drain plug (torque to 18 ft-lbs) and refill with 7.5 liters of Audi-approved transmission fluid (#G 052 529 A2).
4. Start the engine and shift through all gears (P/R/N/D/S) for 30 seconds each (engine idling). Use UR1000 to monitor fluid temperature.
5. Adjust fluid level via the fill plug (add small amounts until fluid drips out at 35–45°C). Install the fill plug (torque to 25 ft-lbs).
6. Use UR1000 to perform a transmission adaptation reset. Clear P071E and test drive—confirm no overheating or shifting issues.

7. P071E Repair Costs & Maintenance Tips

P071E repair costs for the Audi A6 C8 vary by cause. Use this table to budget for TFT sensor circuit issues:

Maintenance Tips for A6 Owners

• A6 45 TFSI (2021-2023): Replace the TFT sensor every 50,000 miles (preventive) — use OEM #0BH919379B for 2023+ models to comply with TSB 23-03-09 and avoid P071E.
• A6 allroad owners: Inspect TFT sensor wiring every 25,000 miles—secure loose harnesses with anti-vibration clips to prevent off-road damage.
• Change transmission fluid every 40,000 miles (not 60k factory spec) — use only Audi G 052 529 A2 fluid to reduce sensor contamination.
• Avoid prolonged stop-and-go driving (over 30 minutes) without breaks—reduces fluid temperature and sensor wear in DL501 transmissions.
• Perform the UR1000’s Transmission Health Check every 15,000 miles — monitor TFT sensor voltage, wiring continuity, and fluid quality to catch issues before P071E triggers.

8. A6-Specific FAQs
