P0963 Code: Pressure Control Solenoid A Circuit High

P0963 pressure control solenoid A circuit high diagnostic illustration
PRESSURE SOLENOID A: CONTROL CIRCUIT HIGH

P0963: Test the Control Circuit

Separate the electrical fault from hydraulic pressure and shifting behavior.

Updated October 8, 2026About 11 min readBy iCARZONE

DIAGNOSTIC FOCUS

ELECTRICAL HIGH
FAULT TYPE
Pressure Control Solenoid A Control Circuit High
FIRST CHECKS
Transmission identity, full scan, connector condition and the correct control path

Circuit high does not mean the measured transmission fluid pressure is high.

QUICK ANSWER

P0963 means Pressure Control Solenoid A Control Circuit High. Circuit high does not mean the measured transmission fluid pressure is high. Save the full fault record, identify the reporting controller and use the current vehicle-specific procedure.

Use the transmission-specific diagram to identify solenoid A and its driver. Preserve communication and supply faults, then test the relevant circuit before buying a solenoid or valve body.

What Does the P0963 Code Mean?

P0963 identifies a high electrical condition in the pressure-control solenoid A control circuit. The control module detected a result outside its expected electrical behavior. The label does not identify which wire carries power or how the driver switches the load.

A pressure-control solenoid influences transmission hydraulics, but this code is an electrical classification. Actual line pressure requires the prescribed pressure test or a correctly interpreted sensor value. Harsh shifts cannot turn a circuit-high code into proof of excessive hydraulic pressure.

Solenoid A is an application assignment. Different conventional, dual-clutch and integrated mechatronic transmissions can use different names, service units and access procedures. Obtain the transmission identification and complete OEM code wording before tracing a circuit.

Identify the actual monitor

Record the complete code, suffix, reporting module and status. A short description does not establish a common circuit layout.

Separate the evidence

Separate driver command, electrical feedback and actual pressure response. A scan command is not a measured current, and a requested pressure is not proof that hydraulic pressure reached that value.

Keep the original conditions

Save available freeze frame and note selected range, shift event, fluid temperature, system voltage and communication faults. A reset or disconnected connector can change the evidence before the cause is found.

Important distinction: A circuit-high fault differs from solenoid performance or stuck-off faults, even when the resulting shift complaint sounds similar.
Control circuit highSolenoid A assignmentPressure not measuredDriver architecture matters

P0963 Symptoms, Severity, and Driving Safety

Transmission warning
A warning may accompany a stored or current control-circuit fault. Preserve its exact wording.
Harsh or altered shifts
The transmission may alter shift behavior when it cannot control pressure normally. Strategy depends on the unit.
Limited operation
A protective mode may limit available gears or engagement; no specific fallback gear applies universally.
Delayed engagement
A delay can be relevant context, but does not by itself identify the electrical defect.
Intermittent fault
Temperature or vibration can expose a marginal terminal or harness condition.
Companion faults
Communication, supply or other solenoid codes may indicate a shared problem requiring priority.

Severity depends on engagement, control and the accompanying warnings. Even apparently normal shifts do not establish that the fault is harmless or that the circuit will remain reliable.

Stop for slipping, loss of drive, unpredictable engagement, violent shifts, burning smell or an overheating warning. Arrange qualified assessment or recovery rather than repeatedly forcing gear changes.

P0963 Causes and the Evidence That Separates Them

The following are possible diagnostic branches, not a ranking of failure rates. Their relevance depends on the installed transmission control and solenoid-driver architecture. Begin with the branch identified by the OEM decision tree and the complete code pattern.

1

Shared supply or communication condition

A broader supply or network problem can invalidate the diagnostic sequence or coexist with the solenoid fault.

How to prove it: Save all modules and follow OEM prerequisite checks before isolating P0963.

Check first
2

External harness or connector defect

Damaged insulation, contamination or terminal contact can cause an abnormal electrical state.

How to prove it: Test the VIN-correct path using approved isolation and probing methods; appearance alone is insufficient.

Check first
3

Internal harness connection

The electrical fault may lie inside the transmission or integrated connector assembly.

How to prove it: Follow access and internal-circuit tests only after the external branch has been evaluated.

Verify directly
4

Solenoid electrical fault

A failed coil or internal connection can affect the monitored circuit, depending on the driver design.

How to prove it: Use the prescribed component test and temperature conditions; do not apply a universal resistance value.

Verify directly
5

Control driver fault

A driver or integrated electronics fault is possible after the load and wiring have been tested.

How to prove it: Verify feeds, grounds, connectors and the service decision tree before condemning a module.

Verify directly
6

Wrong installation or service configuration

An incorrect part or disturbed connection after repair may be relevant to the timing of the complaint.

How to prove it: Verify unit identity, part compatibility and required setup against the repair record.

Final branch

If the warning followed transmission, battery, connector or harness service, compare the timing with the original complaint. Recheck disturbed connections and part compatibility, but do not treat recent work alone as proof of causation. A component should earn replacement through a failed test.

Using JU2000 MAX During P0963 Diagnosis

On a supported vehicle, iCARZONE JU2000 MAX can retrieve accessible module faults, available freeze frame and live data. Preserve the P0963 record before erasing anything. A saved report gives the technician a baseline instead of relying on a remembered warning message.

The official product page describes system diagnostics and bidirectional control. Confirm the exact VIN, controller, software and requested function before purchase. A product feature list does not guarantee every PID, active test, reset or adaptation on every vehicle.

On a supported transmission, retain solenoid commands, accessible current or status data and fluid-temperature context. JU2000 MAX does not physically measure solenoid current, terminal integrity or line pressure. Confirm active-test coverage and safety conditions before using a command.

RECOMMENDED DIAGNOSTIC TOOL

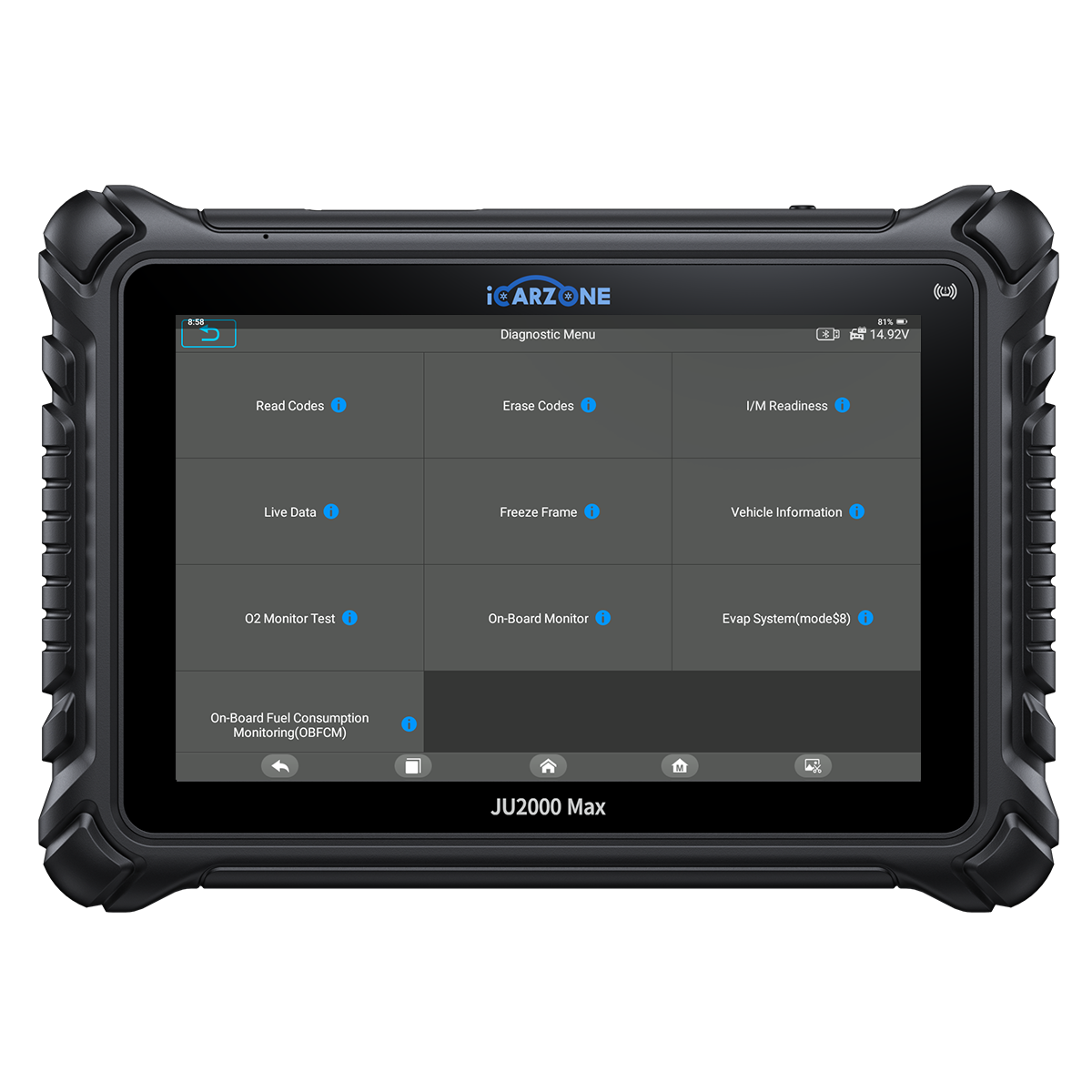

iCARZONE JU2000 MAX All-in-One Diagnostic & TPMS Kit

iCARZONE JU2000 MAX diagnostic scanner for preserving P0963 fault evidence
Full-system scan · freeze frame · supported live data

Preserve solenoid-control and companion-code evidence before disconnecting the transmission harness.

$1186.99
$1249.00
Check JU2000 MAX Coverage

Use the scanner alongside the prescribed external test equipment and current service information. An unavailable menu is a coverage or access question, not proof that a component failed. Price checked October 8, 2026; confirm the current offer and vehicle coverage on the product page.

How to Diagnose P0963 in 6 Steps

This six-step sequence explains the decisions a diagnosis needs to resolve. It is not a substitute for the VIN-specific service procedure. Keep a record of the test conditions, measured results and comparison limits; do not fill a missing specification with a number from another vehicle.

P0963 Quick Diagnostic Path

  • 1

    Save the complete original event

    • Record all modules' faults, full descriptions, suffixes, status and available freeze frame before clearing P0963. Save companion codes even when they seem unrelated; their timing may identify a shared supply, communication or operating-condition problem.
    • Document selected range, shift event, fluid temperature, system voltage and communication faults. Ask when the warning first appeared and whether it preceded transmission, battery, connector or harness service. Do not recreate an unsafe symptom merely to collect a better graph.
  • 2

    Identify the solenoid and driver arrangement

    • Use the exact transmission code and service diagram. Establish whether the solenoid and control electronics are separately serviceable.
    • Find the specified connector views, test conditions and isolation procedure. Do not assume a familiar wire color proves circuit identity.
  • 3

    Resolve prerequisite conditions

    • Inspect the all-module scan for communication and supply faults. Follow the manufacturer’s stated diagnostic order.
    • Assess external connectors and recent service with the vehicle secured. Avoid pulling a transmission connector while the system is operating.
  • 4

    Prove the harness and load branches

    • Follow approved circuit tests to distinguish abnormal feed, signal path, internal wiring and solenoid load behavior.
    • Use specified test equipment and conditions. Do not energize a solenoid directly from a battery or substitute a guessed resistor to see whether the code disappears.
  • 5

    Evaluate driver and hydraulic evidence separately

    • If external and load checks pass, follow the controller or mechatronic branch. A pressure complaint may also need its own approved test.
    • Keep electrical and hydraulic findings separate in the repair decision. Replace the service unit identified by the procedure, not whichever component name appears in the generic code.
  • 6

    Verify the repair under the right conditions

    • Repeat the failed measurement or functional check. Complete only required setup or learning, then compare the result with the saved baseline.
    • Follow OEM verification, retain the final scan and disclose incomplete tests. Diagnose any new symptom or code separately.
Prevent vehicle movement and keep clear of rotating parts and hot fluid. Active tests can change transmission behavior; use them only under the stated service conditions.

How to Fix P0963 and Verify the Repair

01

Repair proven harness defects

Restore correct terminals, insulation and routing, including any confirmed internal connection fault.

02

Replace a tested faulty load

Replace the solenoid or approved service assembly only when the electrical test supports it.

03

Correct driver or mechatronic faults

Follow the unit-specific replacement and setup procedure after wiring, supply and load checks.

04

Verify the whole repair

Complete required setup and repeat the circuit test before assessing safe shift operation under OEM conditions.

01

Diagnostic time

VIN-specific quote
Main cost driver

Request a quote distinguishing external wiring, an internal load and integrated control electronics. A code read alone does not identify the replacement part.

02

Wiring and access

VIN-specific quote
Main cost driver

Quote proven terminal, harness and access work separately. Correct the source of heat, abrasion or contamination.

03

Proven component repair

VIN-specific quote
Main cost driver

Ask for the exact part, failed test and required supporting items. The correct service unit depends on the vehicle and defect.

04

Setup and final verification

VIN-specific quote
Main cost driver

Include learning, calibration or programming only when required. Labor, parts and access differ; these are alternative paths, not four automatic charges.

Ask the shop to connect each proposed repair to a finding and separate confirmed defects from conditional work. Keep the original and final reports.

If P0963 returns after a solenoid repair, check the saved test evidence, connector condition and part assignment. Do not treat repeated clearing or another fluid change as proof of an electrical repair.

P0963 OEM Differences and DIY Limits

Mitsubishi TSB-13-22-003, for the specified TC-SST applications, labels P0963 as a line-pressure-solenoid short-to-power condition and includes CAN diagnosis as a prerequisite. That wording helps interpret this particular transmission; it is not a universal pinout or failure verdict.

Identify the correct hardware

Identify the transmission and assigned A solenoid, including whether its harness and driver are integrated.

Know what the measurement represents

Distinguish electrical feedback from requested or measured hydraulic pressure and from the driver command.

Use the right return check

Repeat the failed electrical check, complete required setup and confirm the applicable monitor and safe engagement behavior.

An integrated transmission may require a larger service assembly after its diagnostic procedure proves a fault. The bulletin does not justify replacing a mechatronic unit on every vehicle with P0963. Check current applicability and follow the complete procedure.

Reasonable DIY Checks
  • Save the complete scan and warning text without clearing it.
  • Record the conditions and service history accurately.
  • Inspect only safely accessible areas under the specified power state.
  • Follow the owner manual response to every active warning.
Professional-Level Work
  • Use qualified assistance when symptoms make operation unsafe.
  • Do not jump, backfeed or force an unidentified circuit or actuator.
  • Use the exact isolation procedure and specified test equipment.
  • Leave required disassembly, learning or programming to equipped personnel.

Related Diagnostic Code Guides

Compare electrical solenoid faults with pressure-sensor and hydraulic-performance faults. Different solenoid letters and transmission designs are not interchangeable repair instructions.

P0841
Transmission pressure sensor A range/performance
P0868
Transmission fluid pressure low
P0869
Transmission fluid pressure high
P0796
Pressure solenoid C performance/stuck off
P0776
Pressure solenoid B performance/stuck off
P2761
TCC pressure control solenoid circuit/open
P0562
System voltage low

For other stored faults, use the iCARZONE OBD-II fault-code center.

Frequently Asked Questions About P0963

What does P0963 mean?
Pressure Control Solenoid A Control Circuit High. A circuit-high fault differs from solenoid performance or stuck-off faults, even when the resulting shift complaint sounds similar.
Does circuit high mean line pressure is too high?
No. P0963 classifies an electrical condition. Actual fluid pressure must be established separately by the correct test.
Should I replace solenoid A immediately?
No. Identify the circuit and prove the harness, load and driver branches first. The serviceable component also varies by transmission.
Will a fluid change fix P0963?
A fluid service does not establish that an electrical fault has been repaired. Service fluid only when the prescribed inspection or maintenance procedure calls for it.
Can I drive with altered shifts?
Unpredictable engagement, slipping or harsh operation can be unsafe and damaging. Stop and arrange assessment when control is unreliable.
Should I clear P0963 before diagnosis?
Save codes, status, full descriptions and available freeze frame first. Clearing can erase useful context without repairing the fault. Follow the prescribed clearing and verification sequence after the cause has been established.
Can JU2000 MAX help diagnose P0963?
It can organize supported module faults and live data, subject to the exact vehicle and controller coverage. Its data and supported commands do not replace electrical measurements or a hydraulic pressure test. Confirm the requested function; a scan or erase command cannot replace the required physical tests.
What confirms a successful P0963 repair?
Repeat the failed electrical check, complete required setup and confirm the applicable monitor and safe engagement behavior. Keep the final measurements and scan. If the relevant monitor or operating condition has not yet been checked, report that limitation instead of describing the repair as fully verified.

Sources and Technical Review Notes

Bottom line: Treat P0963 as an electrical control-circuit problem until testing proves the failed branch; keep pressure measurements separate.
