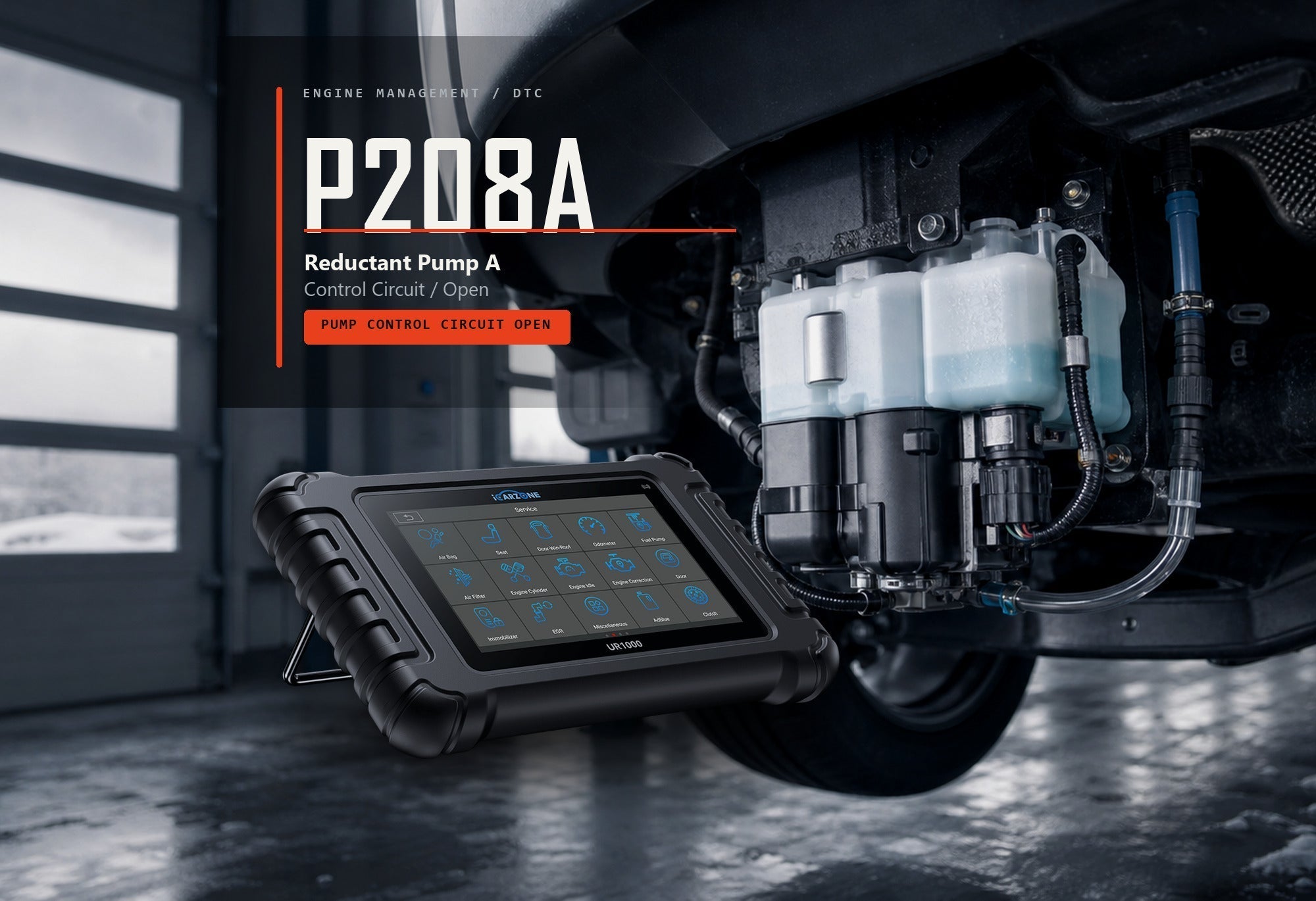

P208A Code: Reductant Pump A Control Circuit/Open
P208A Code: Prove the DEF Pump Circuit Before Replacing Parts
P208A identifies an electrical fault in the DEF pump control path. Save the event, map the exact SCR circuit and test it under load.
P208A means Reductant Pump A Control Circuit/Open. The controller detected an open-load or OEM-defined electrical fault in the diesel SCR/DEF pump control path. It is not a fuel-pump code, does not mean the DEF level is low, and does not prove the reductant pump or tank assembly failed. Save the full scan, identify the exact architecture, then prove power, ground, connectors, wiring, command and response before replacing parts
What the P208A Code Actually Tells You
Diesel selective catalytic reduction uses diesel exhaust fluid, also called DEF or AdBlue, to reduce NOx emissions. The reductant pump moves or pressurizes that fluid so the dosing system can operate. Depending on the vehicle, the pump may be separate, built into a tank header, combined with heaters and sensors, or controlled by an independent aftertreatment module.
The letter A is a diagnostic label. It does not prove that every vehicle has two pumps or identify one universal component location. Likewise, Circuit/Open points to the monitored electrical path. The controller may detect a missing load at its driver, a lost phase or control path, or another OEM-defined open-circuit condition. Record the complete suffix and failure type because the five-character code alone may not show every detail.
The ECM, ACM, or reductant module requests pump operation.
Power, ground, connector, harness and driver carry the command.
Supported data may show pump status, speed/current or DEF pressure.
P208A Symptoms and Driving Safety
The vehicle may drive normally at first because the reductant pump is part of the emissions system, not the engine fuel supply. However, an unresolved SCR fault can trigger regulated warnings or restrictions that become more serious over time.
The MIL, DEF/AdBlue warning, or a service-emissions message may appear. The full message and code status matter.
The system may show a pump command without the expected pressure, speed, current, or status response when those data are available.
Many vehicles can run normally at first because P208A concerns the emissions system rather than fuel delivery.
A persistent SCR fault may eventually trigger a manufacturer-specific mileage, start-count, speed, or torque restriction.
Water, corrosion, terminal fretting, a rubbed wire, or cold-weather software behavior can make the event come and go.
Voltage, communication, heater, pressure, NOx, injector, or P208B-P208D codes can reveal the shared failure branch.
Five P208A Causes in Test Order
Begin with shared voltage and exposed tank-area connections. Pump or controller replacement belongs near the end of the process.
Power Feed, Fuse, Relay, or Ground
Low system voltage, an open fuse, poor relay contact, weak module supply, or a loaded ground fault can remove the pump circuit. A blown fuse is evidence, not the final cause.
How to prove it: Use the VIN-specific diagram and load-test the correct supply and ground before replacing parts.
Check firstConnector Water, Corrosion, or DEF Crystals
Tank-area connectors live in a harsh location. Moisture, loose locks, backed-out terminals, fretting, corrosion, or dried DEF can interrupt the circuit.
How to prove it: Inspect both connector halves, terminal retention and seals; Ford documented vehicle-specific water and fretting cases.
Check firstBroken or High-Resistance Harness
Road debris, exhaust heat, chafing, previous repairs, tension, or an internal conductor break can open a power, ground, phase, or control path.
How to prove it: Test the isolated circuit by the OEM method and flex suspect sections while monitoring the result.
Test directlyPump or Integrated Pump Module
A pump motor winding, onboard driver, or pump electronics inside an integrated heater/header assembly can fail open. Some vehicles service the pump separately; others require a larger module.
How to prove it: Prove the external circuit and use the specified pump isolation test before authorizing an assembly.
Test directlyControl Module, Driver, or Calibration
An ECM, ACM, reductant module driver, network issue, incorrect setup, or vehicle-specific software fault is possible after the load and external wiring pass.
How to prove it: Check applicable service information and prove the output stage before programming or replacing a controller.
Final branchVehicle-specific evidence matters: a Ford service bulletin documents certain P208A cases caused by water intrusion, corrosion or terminal fretting in specified connectors. That is proof that wiring can be causal, not a universal instruction to replace those same connectors on every vehicle.
Using UR1000 for a Circuit-First Diagnosis
The iCARZONE UR1000 can perform a full-system scan, save DTCs and freeze frame, graph available live data and create a diagnostic report. On compatible vehicles, useful SCR data may include pump command or status, reductant pressure, tank temperature, module voltage and related NOx or aftertreatment information. A supported pump active test can help compare the command with the system response.
Coverage varies by VIN and ECU. Confirm access to the exact aftertreatment module, PIDs, active test and prime routine before purchase or repair. Do not assume passenger/light-duty OBD-II support extends to heavy-duty J1939 or commercial platforms. UR1000 cannot physically measure continuity, loaded voltage drop, current, resistance, waveform, DEF quality or mechanical pressure; those checks require the correct external equipment and factory procedure.
iCARZONE UR1000 Bidirectional Scan Tool with ECU Coding
Save the P208A event, scan companion modules and compare supported pump command with response. Confirm SCR/DEF functions by VIN.
How to Diagnose P208A in 6 Steps
SCR components and exhaust parts can be hot, and some systems retain pressure or perform a purge after shutdown. Let the system cool, use gloves and eye protection around DEF, and follow the OEM power-down and depressurization procedure.
Compact P208A Test Path
-
1
Save the Complete Event
- Record P208A with its suffix, status and freeze frame before clearing anything.
- Scan every module for voltage, communication and related SCR/DEF codes.
-
2
Identify the Exact SCR Architecture
- Use the VIN to locate the pump, fuse, relay, grounds, control module and connectors.
- Confirm whether the pump is two-wire, smart, integrated, multi-phase or part of a tank/header assembly.
-
3
Review Conditions and Service Information
- Note ambient temperature, cold soak, DEF freeze conditions and recent tank or harness work.
- Check VIN-specific bulletins and software actions without assuming they apply to every vehicle.
-
4
Inspect and Test the Circuit Safely
- Allow the exhaust to cool, follow pressure-release and power-down instructions, then inspect connectors and routing.
- Perform loaded power/ground and isolated continuity or short tests using OEM limits.
-
5
Command the Pump and Compare Response
- If supported, command the pump and graph command, status, speed/current and reductant pressure together.
- A command with no response narrows the branch only after supply and wiring have been proven.
-
6
Repair, Prime, and Verify
- Repair only the failed branch, then complete the specified prime, leak check, initialization or service routine.
- Repeat the enabling conditions and check current, pending and permanent codes before declaring success.
P208A Repairs and Cost Factors
Supply or Ground
Correct the charging, fuse, relay, feed, splice or ground fault that failed under load.
Connector or Harness
Restore terminals, seals, conductor size and routing with the specified sealed repair method.
Pump or Integrated Module
Replace only the proven motor, electronics, header or tank assembly, then complete required setup.
Software or Controller
Apply VIN-specific service information only after the external circuit and load pass.
These broad planning ranges are not quotes. Tank access, corrosion, pump serviceability, integrated heaters/sensors, programming, DEF cleanup, part availability and local labor can move the total.
Scan and Circuit Diagnosis
$120–$350Full-system evidence, access and loaded electrical testing.
Power, Connector or Harness
$100–$1,000+Damage location, terminal serviceability and sealed repair access.
Pump or Tank Module
$450–$2,500+Separate pump versus integrated header, heater and tank design.
Software or Control Module
$300–$2,500+Programming, security setup and final output-stage proof.
DIY Limits and When to Use a Professional
- Save the complete scan and freeze frame.
- Confirm the fuse and SCR layout by VIN.
- Inspect accessible connectors, grounds and routing.
- Graph supported pump command and pressure data.
- Loaded driver or multi-phase circuit testing.
- Tank removal and integrated module replacement.
- Heavy-duty J1939 or commercial aftertreatment work.
- Programming, priming and output-stage diagnosis.
Frequently Asked Questions About P208A
What does P208A mean?
Does P208A mean the DEF pump is bad?
Is P208A the same as low DEF pressure?
Can UR1000 diagnose P208A?
Can I keep driving with P208A?
Sources and Technical Review Notes
- Ford 2023 diesel OBD monitoring summary — documents P208A circuit/open monitoring and its distinction from pump performance and circuit-low/high faults.
- Ford service bulletin 23-2161 hosted by NHTSA — documents vehicle-specific connector water intrusion, corrosion and terminal-fretting diagnosis.
