P2230 Code: Intermittent BARO Sensor A Signal
P2230: Trace the Intermittent BARO Signal
Save the event before disconnecting the sensor or clearing the code.
DIAGNOSTIC FOCUS
- FAULT TYPE
- Barometric-pressure A signal integrity
- FIRST CHECKS
- Event capture, signal source and shared circuits
An intermittent electrical record is not proof of a weather or altitude problem.
P2230 means Barometric Pressure Sensor A Circuit Intermittent/Erratic. An intermittent electrical record is not proof of a weather or altitude problem. Identify the vehicle-specific monitored system and test the relevant branch before replacing parts.
Preserve the original scan and freeze frame. Identify the actual circuit or monitored system before selecting a repair; the named component is not automatically defective.
What Does the P2230 Code Mean?
Barometric Pressure Sensor A Circuit Intermittent/Erratic identifies a monitored concern, not a guaranteed failed component. Preserve the reporting module, complete suffix and current/history status before selecting the OEM procedure.
The manufacturer examples below explain the relevant system and diagnostic distinctions. Their applicability and test limits remain vehicle-specific.
No universal voltage, resistance, current, pressure, waveform or drive cycle follows from this code. The exact VIN procedure controls the measurements.
The monitor concerns intermittent or erratic behavior in the designated barometric-pressure A signal. Identify whether this vehicle obtains BARO from a separate sensor, an integrated device or a supported calculated strategy before choosing test points.
An intermittent electrical record is not proof of a weather or altitude problem.
The code does not establish these conclusions: A standalone replaceable BARO sensor exists; Weather or altitude changes alone caused the fault; A generic MAP sensor swap is the cure; A fixed sea-level pressure reading is correct at every location. These are questions to resolve with evidence, not reasons to skip the named circuit.
P2230 Symptoms, Severity, and Driving Safety
Lamp, inconsistent load/boost behavior or hesitation are possible where the bad BARO input affects control; some stored events have no noticeable symptom.
Record when this actually occurs and whether the warning appears at the same time.
This possibility is not a diagnosis; distinguish it from companion faults.
Preserve the exact message and operating state before clearing anything.
Compare normal and failing conditions without deliberately repeating a hazardous event.
Check companion records and their timing before assuming a shared cause.
Lamp, inconsistent load/boost behavior or hesitation are possible where the bad BARO input affects control; some stored events have no noticeable symptom. Follow the owner's manual and assess the actual symptoms. No universal safe mileage follows from this code. Arrange professional transport when safe response or reliable engagement cannot be established.
P2230 Causes and the Evidence That Separates Them
These are six possibilities to distinguish, not a frequency ranking. Use the recorded conditions to select a test that separates one branch from another.
Loose terminal contact
A terminal that loses contact briefly can create a dropout while later static readings look plausible.
How to prove it: Inspect retention and correlate the observed event with a controlled connector test.
Check firstDamaged signal wiring
Chafing or an internal conductor break can disturb only one pressure signal.
How to prove it: Test the identified path using the OEM method and reproduce the interruption safely.
Check firstShared reference or ground
Several pressure or other sensor inputs changing together may have a common electrical cause.
How to prove it: Compare companion signals and test their actual shared supply and ground.
Verify directlySensor output instability
The pressure source may become erratic despite stable external support circuits.
How to prove it: Separate its output from the receiving module reading before considering replacement.
Verify directlyArchitecture-dependent BARO source
The BARO value may come from an integrated device or a calculated strategy, changing the diagnostic access points.
How to prove it: Identify the exact architecture; do not search for a standalone sensor that is absent.
Verify directlyReceiving module or communication
A correct local signal can still be misrepresented at the receiving controller.
How to prove it: Prove the local input and shared circuits before testing the appropriate communication or receiver branch.
Final branchConfirm each finding with a controlled retest before replacing parts.

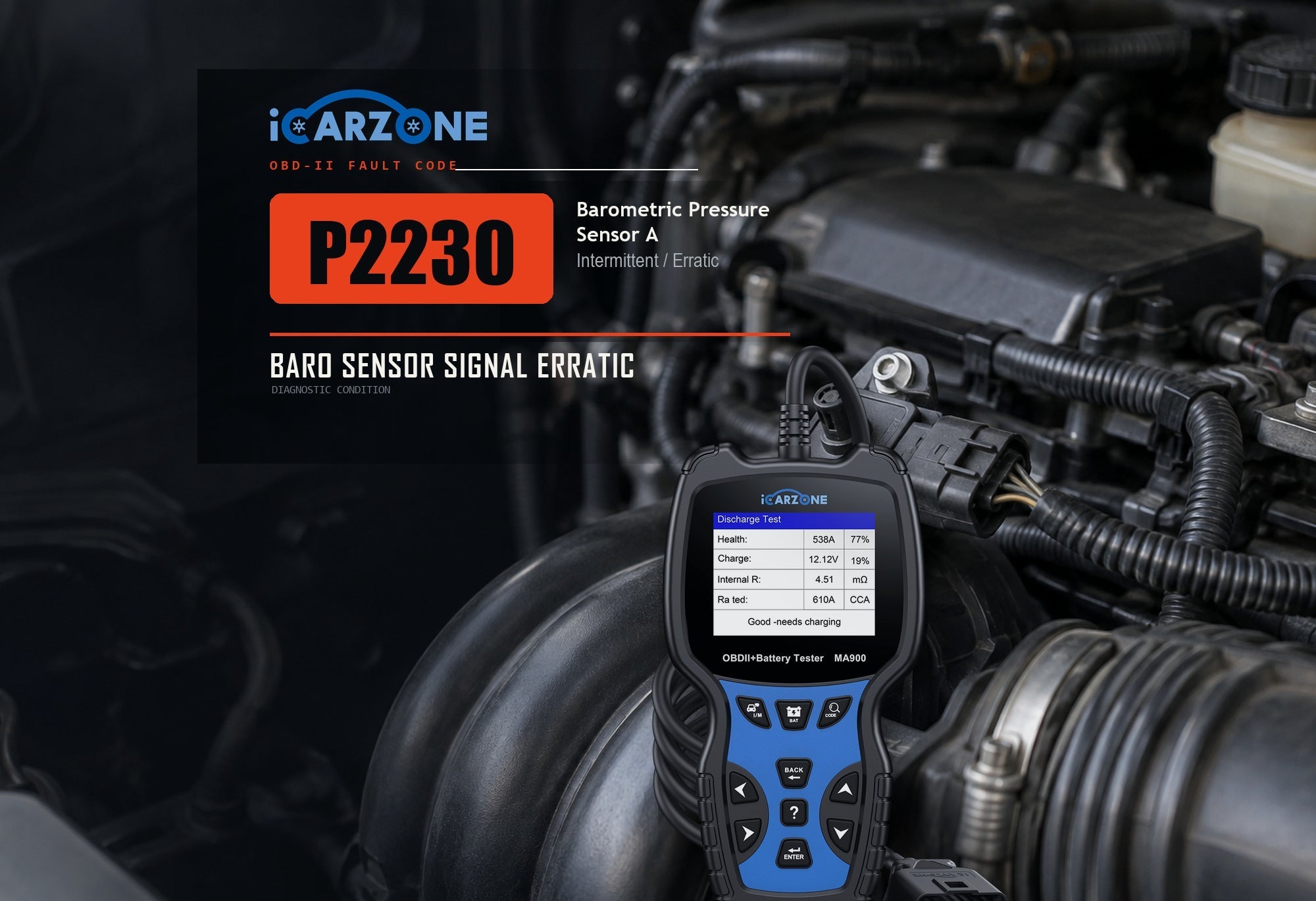

Using MA900 During P2230 Diagnosis
The iCARZONE MA900 OBD2 Scanner and Battery Tester supports accessible generic engine codes, freeze frame, live data and readiness, plus 12V/24V battery tests.
MA900 does not guarantee full-system access. Dedicated modules, enhanced records, active tests, coding and relearns require separately confirmed equipment coverage.
Battery tests support a relevant supply-voltage branch. They do not prove sensor waveforms, actuator response, hydraulic pressure or controller failure. Use the independent OEM-required equipment.
iCARZONE MA900 2-in-1 OBD2 Diagnostic Scanner & 12V/24V Battery Tester
Save accessible engine evidence for P2230; use an OEM-capable tool when the relevant module or function is not supported.
Checked September 7, 2026: $69.99 USD, compared with $99.99 on the official page. Stock was not confirmed; recheck price, availability and required vehicle/function coverage.
How to Diagnose P2230 in 6 Steps
Use these six steps with the exact manufacturer procedure. Confirm equipment coverage and safe test conditions before using any active command; a visible menu item does not establish applicability.
P2230 Quick Diagnostic Path
-
1
Capture the intermittent event
- Capture the intermittent event and the module reporting it, rather than erasing the only evidence.
- Retain original codes and conditions before disconnections or erasure.
-
2
Identify the actual BARO A source
- Identify the actual BARO A source and any shared reference/ground or network path.
- Match the VIN, connector view and required test state.
-
3
Compare pressure data in context
- Graph supported BARO with appropriate MAP/boost/context signals; use absolute pressure and local conditions, not uncorrected weather-app sea-level pressure.
- Document findings, then make one controlled correction at a time.
-
4
Test the intermittent signal path
- If abrupt dropouts coincide with harness motion/temperature, inspect and test terminals and the identified signal path under a safe OEM method.
- Unavailable scan data is not a zero reading.
-
5
Check shared electrical support
- If multiple sensors change together, test shared supply/reference/ground or network integrity before replacing the pressure sensor.
- Use approved isolation and equipment; never power an unknown circuit.
-
6
Verify the previously failing conditions
- Verify smooth plausible response through the conditions that previously produced the event, including key cycles when appropriate.
- Confirm the relevant monitor ran after the proven repair.
How to Fix P2230 and Verify the Repair
Loose terminal contact repair
Inspect retention and correlate the observed event with a controlled connector test. Repair only the proven fault and retain the after-repair test result.
Damaged signal wiring repair
Test the identified path using the OEM method and reproduce the interruption safely. Repair only the proven fault and retain the after-repair test result.
Shared reference or ground repair
Compare companion signals and test their actual shared supply and ground. Repair only the proven fault and retain the after-repair test result.
Sensor output instability repair
Separate its output from the receiving module reading before considering replacement. Repair only the proven fault and retain the after-repair test result.
Diagnostic time
VIN-specific quoteRequest safe fault reproduction and the correct tests, not merely a generic code read.
Wiring or supporting-system work
VIN-specific quoteItemize connector, harness, ground or prerequisite work with the measurement supporting it.
Proven component or assembly
VIN-specific quoteConfirm the VIN-specific part, labor, taxes and warranty in a current local quote.
Setup and verification
VIN-specific quoteInclude only required learning, calibration and verification. These are alternative paths, not four mandatory repairs.
Get a current VIN-specific estimate showing the failed test, proposed repair and verification. A code alone does not justify an assembly replacement.
Verify smooth plausible response through the conditions that previously produced the event, including key cycles when appropriate. If the event returns, investigate the unresolved branch rather than repeating a clear-and-drive cycle.
P2230 OEM Differences and DIY Limits
Ford lists this intermittent/erratic category separately from BARO range/performance, low and high classifications. The table supplies terminology, not a universal pressure threshold or a sensor-location drawing.
An intermittent electrical record is not proof of a weather or altitude problem.
Match the VIN, equipment, code suffix and failure conditions before applying a bulletin. A similar symptom is insufficient.
MA900 supports accessible generic engine information and battery testing. Dedicated modules, waveforms, active tests and programming require separately confirmed equipment.
Confirm current VIN, equipment, calibration and suffix applicability. A historical bulletin is not a warranty promise or a procedure for another application.
- Save codes and freeze frame before erasing.
- Record VIN, symptoms and recent repair history.
- Inspect only safely accessible, de-energized areas.
- Request the documented failed test and estimate.
- Never bypass safety interlocks or bridge unknown circuits.
- Do not guess pinouts or transfer another engine’s limits.
- Do not reproduce unsafe symptoms on the road.
- Leave invasive testing and programming to equipped professionals.
Frequently Asked Questions About P2230
What does P2230 mean?
Should BARO match my weather app?
What should I check first for P2230?
Can I keep driving with P2230?
Why can P2230 return after a part was replaced?
Can MA900 complete the entire P2230 diagnosis?
Will clearing P2230 prove that it is fixed?
What should a P2230 repair estimate include?
Sources and Technical Review Notes
- Ford 2014 OBD-II 5 Digit Code Interpretation — Official code terminology table; it does not establish that every listed code applies to one vehicle or supply universal test limits.
- Snap-on Diagnostic Trouble Codes (DTC) List — Current diagnostic-equipment manufacturer terminology cross-check; vehicle-specific testing still requires OEM service information.
- California Bureau of Automotive Repair — On-Board Diagnostic Test Reference — Explains emissions readiness and permanent-DTC verification; applicable emissions rules and vehicle behavior must be considered.
