P2808 Code: Pressure Control Solenoid G Performance/Stuck Off
P2808: Prove Performance or Stuck-Off Operation
Confirm the exact transmission map, then separate hydraulic performance from an electrical circuit fault.
DIAGNOSTIC FOCUS
- FAULT TYPE
- Pressure-control solenoid G performance or stuck-off response
- FIRST CHECKS
- OEM solenoid map, fluid condition, command versus pressure or shift result
Current source evidence separates this performance/stuck-off record from P2809 stuck-on; the vehicle’s own description controls.
P2808 means Pressure Control Solenoid “G” Performance/Stuck Off. The controller did not observe the expected pressure or shift response associated with its OEM-defined solenoid G command, or it classified the path as stuck off.
Do not rewrite this as “stuck on” and do not jump directly to a solenoid. Save the complete scan and freeze-frame record before clearing anything, then use the exact VIN service information to identify the monitored circuit and approved test points.
What Does the P2808 Code Mean?
P2808 is the diagnostic label for Pressure Control Solenoid “G” Performance/Stuck Off. The letter G identifies a control element in the manufacturer’s transmission strategy; it is not a universal valve-body location across makes. It is a monitor result, not a parts order, and it does not by itself prove that solenoid G alone is damaged or that a complete valve body is required.
A performance/stuck-off code can result when commanded hydraulic action does not occur even though an obvious open or short has not been established. The useful distinction is between an electrical circuit failure, a hydraulic response problem, and a mechanical shift element that cannot achieve the requested state. That distinction determines whether the next test belongs at a connector, a power or ground path, a control signal, a hydraulic or mechanical system, or an operating-condition check.
The reporting controller may use pressure, ratio, speed, clutch-state, current, or learned-adaptation evidence to judge response. A scan tool can preserve operating context and compare related data, but it cannot replace a current wiring diagram, connector view, service precautions, and any specified breakout leads or measurement method. Do not import pin numbers, thresholds, or component locations from another model year.
Capture confirmed, pending and history codes, freeze frame, first-failure order, system voltage, and the conditions present when P2808 set.
Identify transmission family, controller, solenoid G assignment, internal/external harness path, pressure-control strategy, approved fluid, and test ports or scan parameters.
Compare commanded solenoid state or current with available pressure, turbine/output speed, gear ratio and clutch-state data under the specified conditions.
P2808 Symptoms, Severity, and Driving Safety
The powertrain or transmission controller may store the code and request a warning.
Pressure control may not match the scheduled clutch application.
Speed relationships can expose a clutch that did not apply as commanded.
Some vehicles protect the transmission with fixed gear or reduced torque.
Temperature, debris or an internal connection can make the event come and go.
A pending event may be captured before a repeatable shift complaint develops.
Treat P2808 as a drivability and transmission-protection issue. Severity depends on the actual shift behavior, fluid condition, companion ratio or pressure codes, and the manufacturer’s fail-safe strategy. Continued slipping or repeated harsh engagement can create additional heat and wear.
P2808 Causes and the Evidence That Separates Them
The strongest P2808 diagnosis explains the code definition, the captured operating conditions, and any companion codes with one testable fault path. Because this is a response code, both commanded control and actual hydraulic or mechanical outcome matter.
Restricted or Sticking Hydraulic Valve
Varnish, debris or bore wear can keep the assigned pressure-control path from responding.
How to prove it: Confirm fluid condition and follow the OEM pressure or valve-body test; do not infer sticking from color alone.
Check firstLow, Incorrect, or Aerated Fluid
An incorrect level, wrong specification, leak or aeration can undermine commanded pressure.
How to prove it: Check temperature-dependent level and fluid specification exactly as the service procedure requires.
Check firstInternal Harness or Connector Fault
A poor internal connection may alter current without setting a simple circuit code every time.
How to prove it: Use connector inspection and voltage-drop or current evidence at approved points, including wiggle conditions if specified.
Verify directlySolenoid Mechanical or Electrical Fault
The coil may energize while its hydraulic element fails to move, or its current may be abnormal.
How to prove it: Compare commanded state, current signature and hydraulic result against OEM limits rather than relying on resistance alone.
Verify directlyPressure Loss or Mechanical Clutch Fault
Pump, seal, passage or clutch leakage can prevent the expected ratio change.
How to prove it: Correlate pressure and speed data, then use the specified air-check or hydraulic procedure when qualified.
Verify directlyCalibration, Adaptation, or Controller Issue
Learned values or software can affect diagnosis on a limited application.
How to prove it: Verify bulletin applicability and complete only the OEM-directed adaptation or software procedure.
Final branchCause lists are starting points. P2808 should remain separate from P2809 stuck-on and from dedicated low/high/open circuit codes. Test the circuit in its failed state when possible, document the result, and replace a part only after the measured evidence points to it.

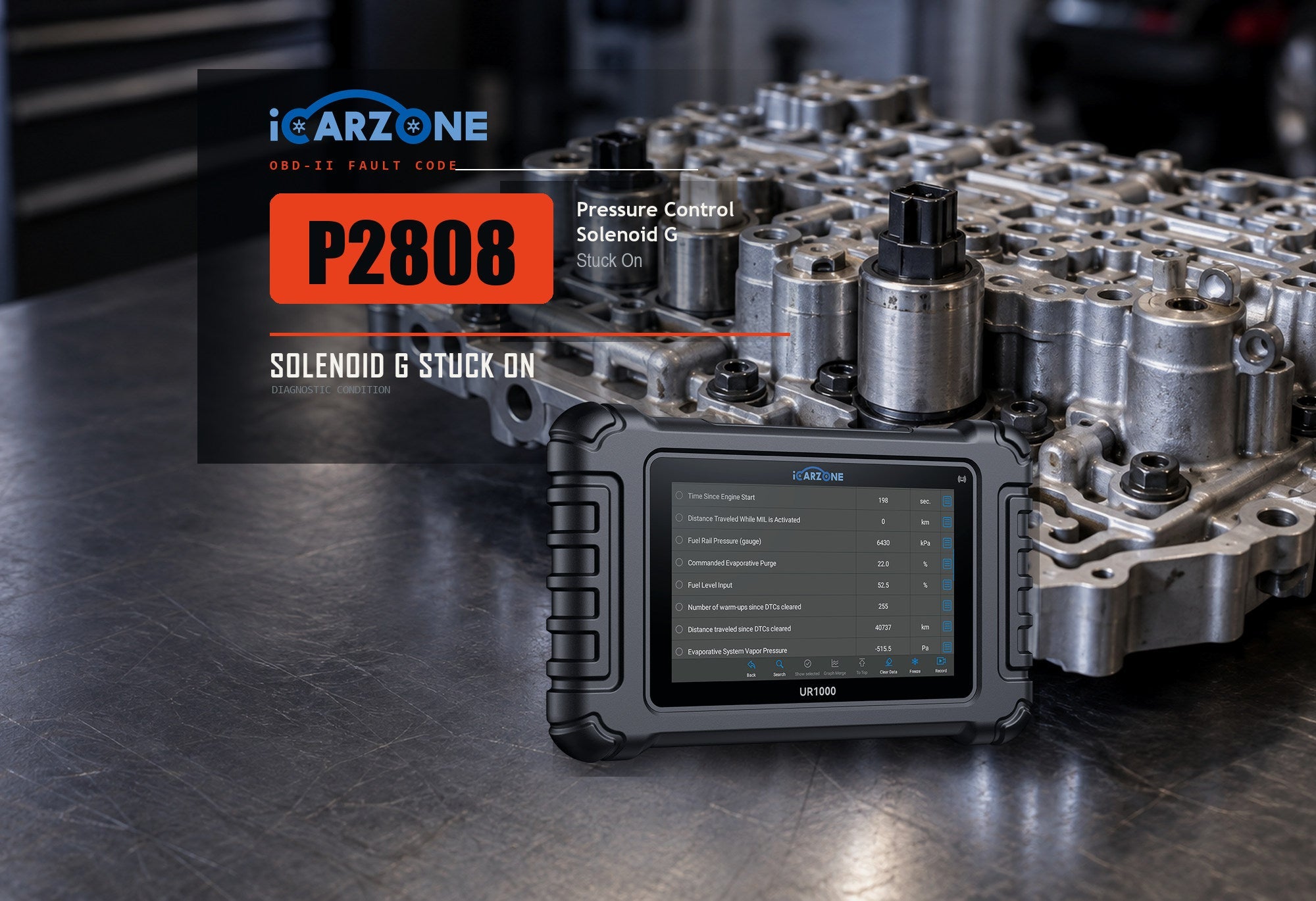

Using UR1000 to Organize P2808 Evidence
The iCARZONE UR1000 Bidirectional Scan Tool with ECU Coding supports full-system diagnostics, available DTCs, freeze frame, ECU information and live data. For P2808, use those records to compare commanded solenoid state or current with pressure, selected and actual gear, turbine speed, output speed, slip and temperature data, while keeping the first-failure order intact.
The official product page advertises bidirectional control and ECU coding. Coverage varies by VIN, ECU and software. Do not assume a menu item can command solenoid G or a transmission adaptation routine; active tests and parameter names are vehicle-specific, and a supported command is not proof that the connected component can physically respond.
Electrical measurements require the correct controller pinout and load-aware method. Hydraulic checks require specified fluid temperature, cleanliness, lifting, and pressure-rated equipment; never loosen a line merely to see whether fluid emerges.
iCARZONE UR1000 Bidirectional Scan Tool with ECU Coding
Use UR1000 to preserve the failure order, shift conditions, temperature, selected/actual gear, speed relationships and supported pressure-control data, then follow the VIN-specific electrical and mechanical tests before authorizing parts.
Price and availability checked September 3, 2026. Prices shown are USD. Recheck the current offer, stock and required vehicle/function coverage before purchase.
How to Diagnose P2808 in 6 Evidence-Based Steps
Use this order to avoid erasing the event or chasing a plausible part without proof. Begin with definition control because the supplied sheet’s stuck-on wording conflicts with current primary evidence. A failed test should lead to the next branch in the OEM procedure; a passed test should narrow the search rather than trigger replacement.
P2808 Quick Diagnostic Path
-
1
Save the Transmission Event
- Record all modules, status, freeze frame, temperature, speed, gear and first-failure order.
- Note ratio, pressure, voltage, communication or fluid-temperature codes that can change the test sequence.
-
2
Confirm Definition and Hardware
- Use the VIN to identify transmission family, controller, solenoid G and current OEM wording.
- Do not use another gearbox’s valve-body diagram or treat P2808 as P2809.
-
3
Check Fluid and External Basics
- Inspect leaks, connector seating, harness routing, grounds and charging voltage.
- Check fluid level and condition only by the specified temperature and procedure.
-
4
Compare Command with Response
- Graph supported solenoid command/current, pressure, gear and input/output speeds during the allowed test.
- A command without the expected result narrows the fault but still does not distinguish valve, leak, clutch or solenoid by itself.
-
5
Test the Assigned Path
- Follow the wiring, current, pressure and valve-body tests in the OEM order.
- Use approved adapters; record pass/fail measurements and stop before unsupported internal work.
-
6
Repair and Relearn Correctly
- Correct the proven wiring, fluid, hydraulic or mechanical fault with clean procedures.
- Perform only required adaptations, then run the specified verification and rescan.
How to Fix P2808 and Verify the Repair
Repair Wiring or Connections
Restore only the terminals, seals, harness or grounds that fail inspection or loaded testing.
Correct Fluid or Leak Cause
Use the specified fluid and level procedure, and repair the source of loss or aeration.
Service the Proven Hydraulic Unit
Replace or repair the assigned solenoid or valve-body path only after command and response testing identifies it.
Repair Internal Transmission Damage
Escalate clutch, pump, seal or hard-part evidence to qualified transmission service.
Inspection and Scan
VIN-specific quoteUsually begins with diagnostic time, fluid-temperature control and evidence capture rather than a part.
Harness or Connector Repair
VIN-specific quoteScope depends on access and whether the fault is external or inside the transmission.
Solenoid or Valve-Body Work
VIN-specific quoteParts, fluid, seals, programming and adaptation requirements vary widely by gearbox.
Internal Repair
VIN-specific quotePressure loss or clutch damage can require substantial teardown; obtain a diagnosis-based estimate.
A completed repair should correct the proven fault and preserve the original evidence in the work record. Confirm correct fluid level, leak-free operation, normal requested/actual gear behavior and no return of pressure or ratio companions under the specified cycle.
Clear codes only after the repair and baseline checks are complete. Run the specified monitor or road-test conditions, rescan every relevant module, and compare the post-repair data with the saved event. A code that does not return during a short idle period is not automatically a verified fix.
P2808 OEM Differences and DIY Limits
Solenoid letters, valve-body locations, command polarity, pressure strategy and relearn procedures differ across transmissions. That is why the displayed OEM description, wiring diagram, component locator, terminal identification, test conditions, and service bulletin applicability must match the full VIN.
Which transmission is installed, and what does that OEM call solenoid G?
Does the vehicle display performance/stuck off, a manufacturer-specific phrase, or a different sub-fault?
Does service require cleanliness controls, adaptation, programming or internal pressure testing?
Some units service a solenoid separately; others require an internal harness, valve body, mechatronic unit or calibrated assembly. Generic guidance can organize evidence, but it must stop before unverified terminal probing, module programming, high-energy work, or disassembly that requires special tools and cleanliness controls.
- Record all modules, freeze frame and first-failure order before clearing.
- Check specified fluid level only if you can safely meet the temperature and lifting requirements.
- Inspect accessible connectors and harness routing with power off.
- Use the correct wiring diagram and approved probes for any measurement.
- Do not work beneath an unsupported vehicle or near a rotating driveline.
- Do not pierce sealed wiring or spread terminals to obtain a reading.
- Do not run unsupported active tests or programming routines.
- Escalate when the procedure requires special tooling, disassembly, or controlled hazards.
Frequently Asked Questions About P2808
Is P2808 “stuck on”?
Does P2808 prove solenoid G is bad?
Can I keep driving with P2808?
Will changing fluid fix P2808?
Can UR1000 command solenoid G?
Is a resistance check enough?
Does the valve body always need replacement?
How is the repair verified?
Sources and Technical Review Notes
- Maserati MC20 Gearbox Diagnostic Sheet (February 2025) — Lists P2808 as Pressure Control Solenoid G Performance/Stuck Off and P2809 as Stuck On; application procedures remain MC20-specific.
- SAE J2012 Diagnostic Trouble Code Definitions — Current standard provenance for SAE diagnostic trouble-code naming; vehicle implementation remains manufacturer-specific.
