Exhaust Gas Recirculation (EGR)

Function Purpose: Exhaust Gas Recirculation (EGR) is a system used in internal combustion engines, mainly to reduce the formation of nitrogen oxides (NOx) in the engine's exhaust gases. NOx is a harmful pollutant that can contribute to air pollution and the formation of smog. The EGR system works by recirculating a portion of the exhaust gases back into the engine's intake manifold. This dilutes the fresh air - fuel mixture entering the combustion chambers, lowering the combustion temperature. Since NOx formation is highly temperature - dependent, reducing the combustion temperature helps to decrease the production of NOx.
Working Principle: The EGR system consists of several components, including an EGR valve, a passageway for the exhaust gases to flow from the exhaust manifold to the intake manifold, and sensors to monitor the system's operation. When the engine is running under certain conditions (such as during part - throttle operation), the engine control unit (ECU) signals the EGR valve to open. This allows a controlled amount of exhaust gas to flow from the exhaust manifold, through the EGR passage, and into the intake manifold. The exhaust gas, which is mainly composed of carbon dioxide (CO₂), water vapor (H₂O), and nitrogen (N₂), mixes with the fresh air - fuel mixture. As the mixture enters the combustion chamber, the presence of the exhaust gas reduces the oxygen concentration and heat - release rate during combustion, thereby lowering the peak combustion temperature.
Benefits:

Emissions Reduction: The primary benefit of the EGR system is a significant reduction in NOx emissions. By reducing the formation of this harmful pollutant, it helps vehicles meet strict environmental regulations.
Environmental Protection: Lower NOx emissions contribute to cleaner air, which is beneficial for the environment and public health. It helps to mitigate the negative impacts of vehicle emissions on air quality, reducing smog and other pollution - related problems.
Fuel Efficiency (in some cases): In some engines, the EGR system can also improve fuel efficiency slightly. By optimizing the combustion process through exhaust gas recirculation, the engine can operate more efficiently, extracting more energy from the fuel. However, in some situations, excessive EGR can lead to a decrease in engine performance and fuel economy, so it needs to be carefully controlled.

Four Series. One Promise.

Built for Every Garage.

JU Series

The flagship diagnostic platform for professional shops — 10" Ultra HD tablet, TPMS programming, full bidirectional control, ECU coding, J2534 pass-thru, and 50 service functions across 58 vehicle brands.

TPMSProgramming

ECUCoding

58Brands

From$599.99New Release

Shop Series

UR · Professional

UR Series

Built for serious work. Full-system diagnostics, bidirectional control, ECU coding — deepest access outside dealer tools, across 58 vehicle brands.

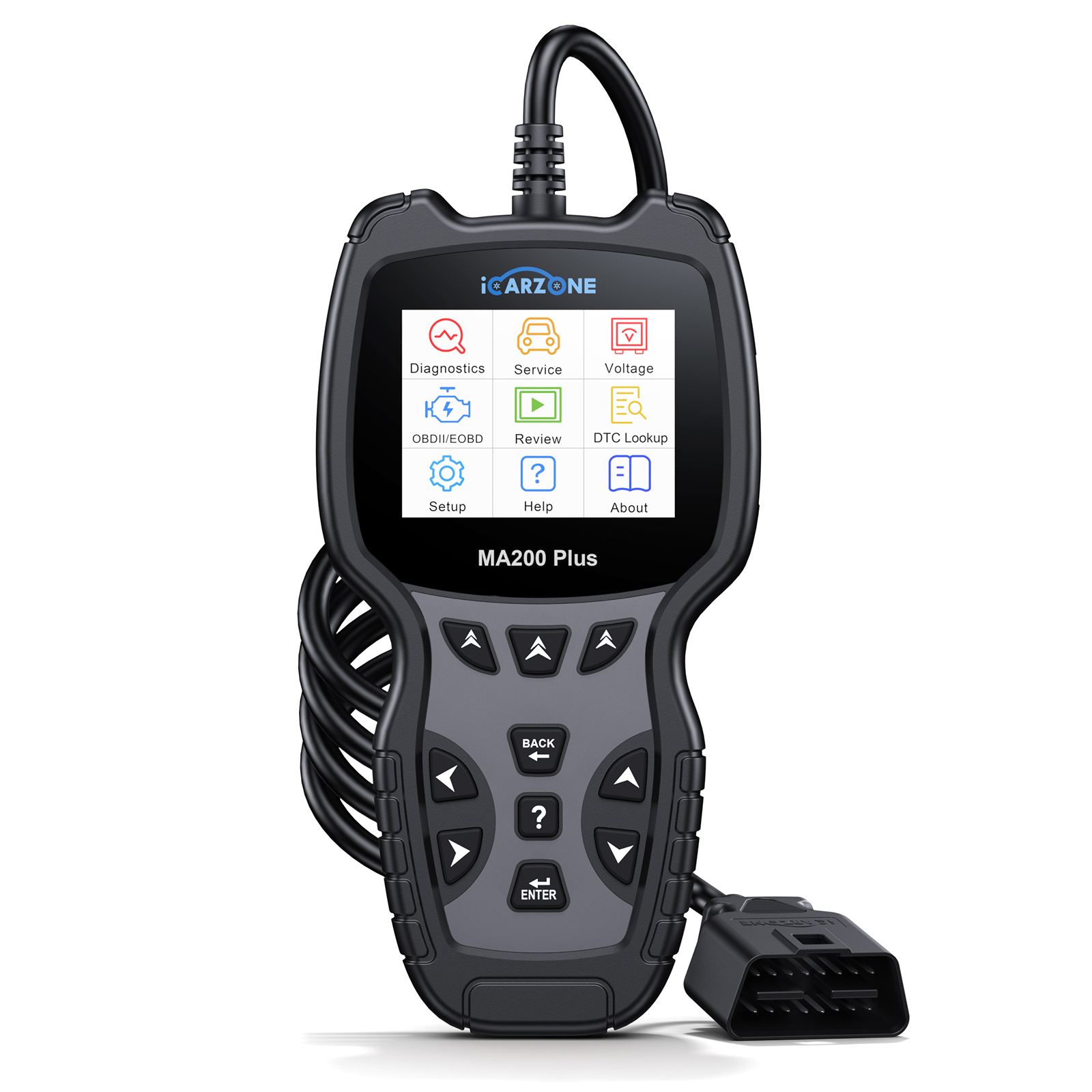

MA Series
