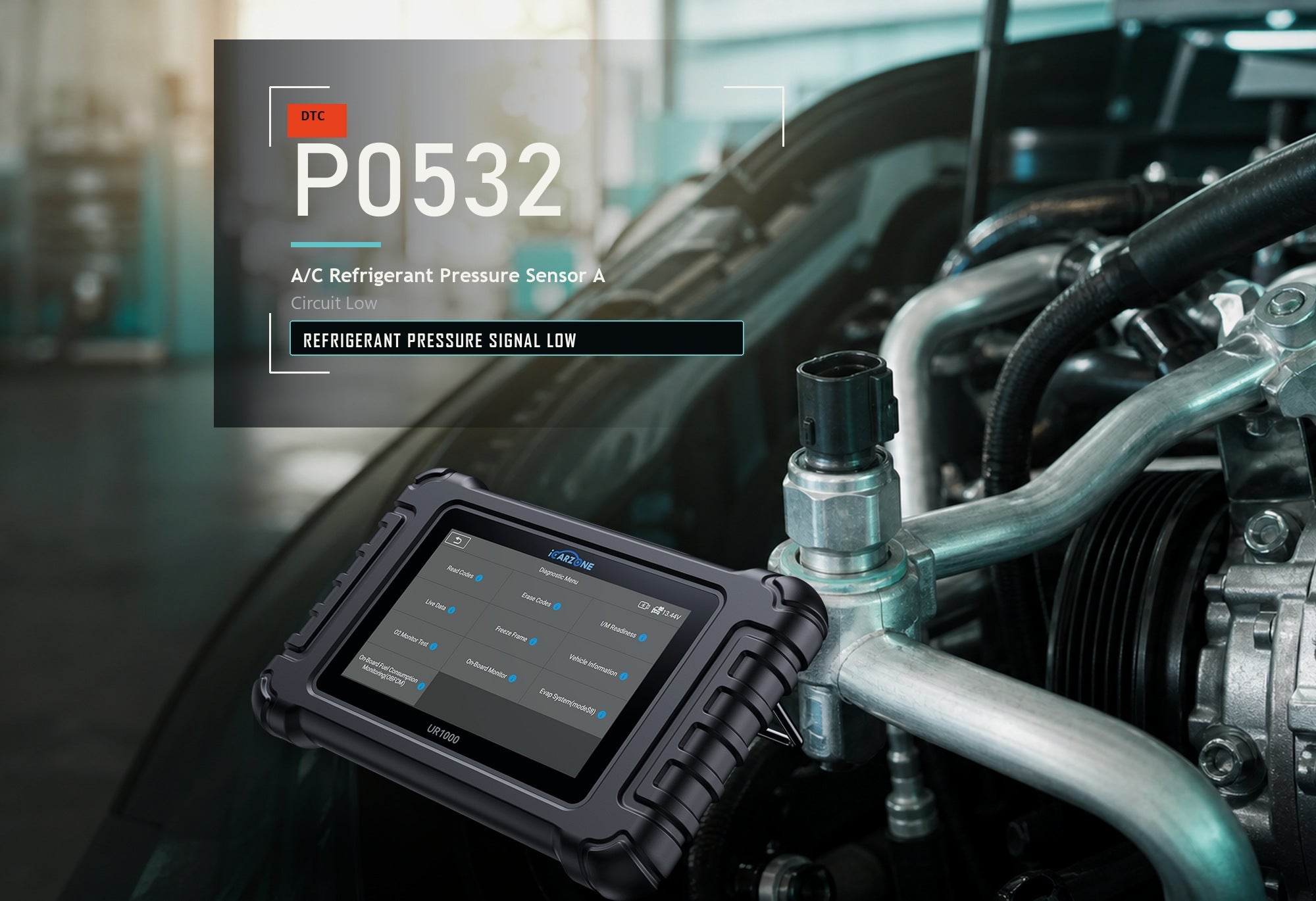

P0532 Code: A/C Pressure Sensor Circuit Low—What to Test
P0532 Diagnosis: Test the Signal Before Adding Refrigerant
P0532 says the A/C refrigerant-pressure signal is electrically low. Save the scan, check the shared reference and prove actual pressure before charging the system or replacing parts.
The P0532 code means A/C Refrigerant Pressure Sensor "A" Circuit Low. The controller sees a pressure-sensor signal below its expected electrical range. Inspect the connector and harness, look for shared 5V-reference codes, compare supported scan data with a proper physical pressure test, and replace only the component that fails the OEM procedure.
What Does the P0532 Code Mean?
P0532 is a generic powertrain DTC for A/C Refrigerant Pressure Sensor "A" Circuit Low. Some OEM material phrases it as A/C Refrigerant Pressure Sensor Circuit Low Voltage. The reporting PCM or another controller has detected a sensor input lower than its calibrated electrical range.
The pressure transducer allows the control system to decide whether compressor and cooling-fan operation are permitted. A typical design uses a reference supply, sensor ground and signal wire, but connector pins, signal scaling, reporting module and network path vary. Identify the exact architecture from the VIN before testing.
P0532 does not prove the pressure sensor is defective, and it does not automatically mean the refrigerant charge is low. A short to ground, missing shared reference, poor terminal, biased ground or internal sensor fault can all make the signal low. Actual low refrigerant pressure is a separate branch that needs physical evidence.
Start with the pressure-sensor connector, signal, reference and ground path.
Map the shared 5V circuit before condemning the A/C pressure sensor.
Confirm whether it is an electrical default or real pressure with approved equipment.
P0532 Symptoms, Severity, and Driving Safety
A steady MIL may be the only obvious symptom when the reporting controller stores P0532.
The controller may deny compressor operation when it cannot trust refrigerant-pressure information.
Vibration, moisture or terminal movement can make a damaged pressure-sensor circuit fail only at times.
Some vehicles may run a default fan strategy or withhold normal fan commands when pressure data is invalid.
P0642 or other low-signal DTCs can indicate a shared reference-voltage problem rather than one bad A/C sensor.
Engine operation may feel normal even though cabin cooling and OBD readiness or MIL status are affected.
Common Causes of P0532 A/C Pressure Sensor Circuit Low
These six branches follow a practical test order; they are not claimed failure percentages.
Damaged Signal Wire or Connector
Chafing, backed-out terminals, corrosion, water intrusion or a short to ground can pull the reported signal low.
How to prove it: Inspect the complete accessible route and use the OEM diagram to test the signal circuit instead of replacing the sensor by assumption.
Check firstShared 5V Reference Is Pulled Low
Another sensor or branch on the same reference circuit may collapse the supply and set several low-voltage DTCs together.
How to prove it: Map the shared reference from service information and isolate branches only in the sequence approved by the manufacturer.
Check firstPressure Sensor Internal Fault
An internally shorted or biased transducer can report an implausibly low value even when actual system pressure is reasonable.
How to prove it: Compare scan voltage or pressure with OEM electrical checks and an approved physical pressure measurement.
Verify directlySensor Ground or Module Supply Fault
Excessive ground-path voltage drop, a poor splice or unstable controller power can distort the pressure signal.
How to prove it: Load-test the applicable power and ground paths with a meter; scan data alone cannot prove circuit integrity.
Verify directlyActual Refrigerant Pressure Is Very Low
A leak or undercharge can create genuinely low pressure, but P0532 remains a circuit-low code and strategies vary.
How to prove it: Have a qualified technician compare the scan PID with refrigerant type, ambient conditions and approved service-equipment readings.
Verify directlyReporting Controller Fault
A failed PCM, HVAC module input or internal reference driver is possible only after the sensor, wiring, shared circuits and powers are proven.
How to prove it: Follow the OEM pinpoint test and verify programming or module requirements before authorizing controller replacement.
Final branchA low scan value is not enough to buy a sensor. Prove whether the circuit is electrically forced low and whether actual refrigerant pressure agrees.
Can UR1000 Diagnose the P0532 Code?
The iCARZONE UR1000 Bidirectional Scan Tool with ECU Coding can save supported all-module DTCs, freeze frame, ECU information, live data and reports. On compatible vehicles, pressure, sensor-voltage, A/C-request, compressor-permission or fan-command PIDs can help separate an isolated sensor circuit from a shared voltage or module fault.
Coverage varies by make, model, year, VIN, ECU and software. Active tests for a clutch, compressor solenoid or fan are available only when the vehicle exposes them. UR1000 does not physically measure refrigerant pressure, 5V supply, voltage drop, continuity, terminal tension or high-voltage insulation.
iCARZONE UR1000 Bidirectional Scan Tool with ECU Coding
Preserve P0532 and companion-code evidence before deciding whether electrical testing or qualified refrigerant service comes next.
Price and availability checked August 20, 2026. Recheck current price, stock and exact VIN/function coverage before purchase.
How to Diagnose P0532 Code in 6 Steps
The goal is to prove whether the controller sees a false low signal or the sensor is accurately reporting a physical condition.
P0532 Quick Diagnostic Path
-
1
Preserve the Full Diagnostic Event
- Record P0532 status, freeze frame, all-module DTCs, readiness and a report before clearing anything.
- Note ambient temperature, recent A/C work, collision repair, battery events, water exposure and whether cooling failed suddenly or gradually.
-
2
Identify the Exact A/C Architecture
- Use the VIN and current service information to identify the reporting module, pressure-sensor location, connector and circuit topology.
- Confirm whether the vehicle uses a clutch, variable-displacement compressor, electric compressor or heat-pump system before testing.
-
3
Compare Supported Scan Data
- Review pressure, sensor voltage, A/C request, compressor permission and fan command PIDs only where the exact ECU exposes them.
- Compare the pressure value with ambient conditions and companion codes; a calculated scan PID is not a physical gauge reading.
-
4
Inspect the Sensor Circuit Safely
- With the system secured, inspect the connector, seals, terminals and harness near sharp brackets, hot parts and prior repairs.
- Do not loosen a refrigerant fitting to inspect an electrical sensor and keep hands clear of fans or a compressor that can start automatically.
-
5
Prove Electrical and Physical Branches
- Use a high-impedance meter and the OEM test to check reference, ground voltage drop and signal; never apply a guessed jumper or universal voltage.
- If pressure verification or system opening is required, use the correct refrigerant equipment and qualified MVAC service procedure.
-
6
Repair, Clear, and Reproduce the Test
- Repair the proven wire, terminal, shared reference branch, sensor or refrigerant-side fault using the application-specific procedure.
- Clear eligible codes, operate the A/C under OEM enable conditions, rescan and confirm the signal is plausible and P0532 does not return.
How to Fix P0532 and Clear the Code Safely
Repair the Connector or Harness
Correct backed-out terminals, corrosion, damaged seals, chafing, shorts or poor splices proven by the circuit test.
Restore the Shared Reference
Isolate and repair the sensor or branch pulling the shared supply low, then verify every affected code.
Replace a Proven Pressure Sensor
Use the exact service procedure; whether the sensor can be removed without opening the refrigerant circuit varies.
Repair the Refrigerant or Module Branch
Have leaks, charge, physical pressure or a proven controller input repaired with the required equipment and programming.
After repair, clear eligible codes and operate the A/C only under the enable conditions in service information. Watch supported pressure, signal and command data while confirming normal fan and compressor behavior. If P0532 returns, stop replacing parts and repeat the test at the moment the signal goes low.
Scan and Circuit Diagnosis
VIN-specific quoteModule access, intermittent-fault time, diagrams and live-data comparison.
Connector or Harness Repair
VIN-specific quoteHarness location, terminal availability, corrosion and access around A/C lines.
Pressure Sensor Service
VIN-specific quoteSensor design, refrigerant recovery need, part calibration and post-repair test.
Leak, Charge, or Module Repair
VIN-specific quoteLeak location, refrigerant type, recovery/recharge work, high-voltage access or programming.
A universal P0532 repair price would mislead. Ask the shop to separate electrical diagnosis, refrigerant handling, parts and programming on the estimate.
P0532 Differences by Vehicle and A/C Architecture
Conventional clutch systems, variable-displacement compressors and hybrid or EV electric compressors do not share one diagnostic routine. The PCM may read the pressure sensor directly, or an HVAC/body module may read it and transmit a value over the network. Sensor label, scale and fail-safe behavior also vary.
A low signal may cause the PCM to deny clutch and fan commands even when the clutch circuit itself is healthy.
Pressure information may affect a control valve or torque request without a visible clutch cycle.
Electric compressors and battery thermal management require high-voltage procedures and professional equipment.
A GM bulletin for specific 2015 Silverado and Sierra 6.6L diesel applications lists P0532 among several DTCs associated with a documented engine-harness chafe location. That is a useful example of companion-code and harness logic, not a universal rub point for every vehicle.
- Save codes, freeze frame and supported PIDs.
- Check whether several 5V sensor codes coexist.
- Inspect accessible wiring without opening a fitting.
- Check fuses and obvious connector damage from the OEM diagram.
- Recover, identify, evacuate or recharge refrigerant.
- Diagnose leaks and compare physical pressures.
- Work near electric compressors or high-voltage circuits.
- Program or replace a proven control module.
Frequently Asked Questions About P0532
What does the P0532 code mean?
Does P0532 always mean the refrigerant is low?
Can I drive with P0532?
Will adding refrigerant clear P0532?
Can a bad A/C pressure sensor cause P0532?
What is the difference between P0532 and P0533?
Can UR1000 diagnose P0532?
Why did P0532 return after sensor replacement?
Sources and Technical Review Notes
- Ford 2018 Diesel OBD System Operation Summary — Lists P0532 as A/C Refrigerant Pressure Sensor A Circuit Low and places it in continuous A/C-related monitoring.
- GM Preliminary Information PIP5198 — Uses the low-voltage P0532 wording and documents a narrowly scoped harness-chafing example with multiple companion DTCs.
- U.S. EPA MVAC Servicing Requirements — Explains technician certification, approved refrigerant-handling equipment and the prohibition on intentionally venting refrigerant.
